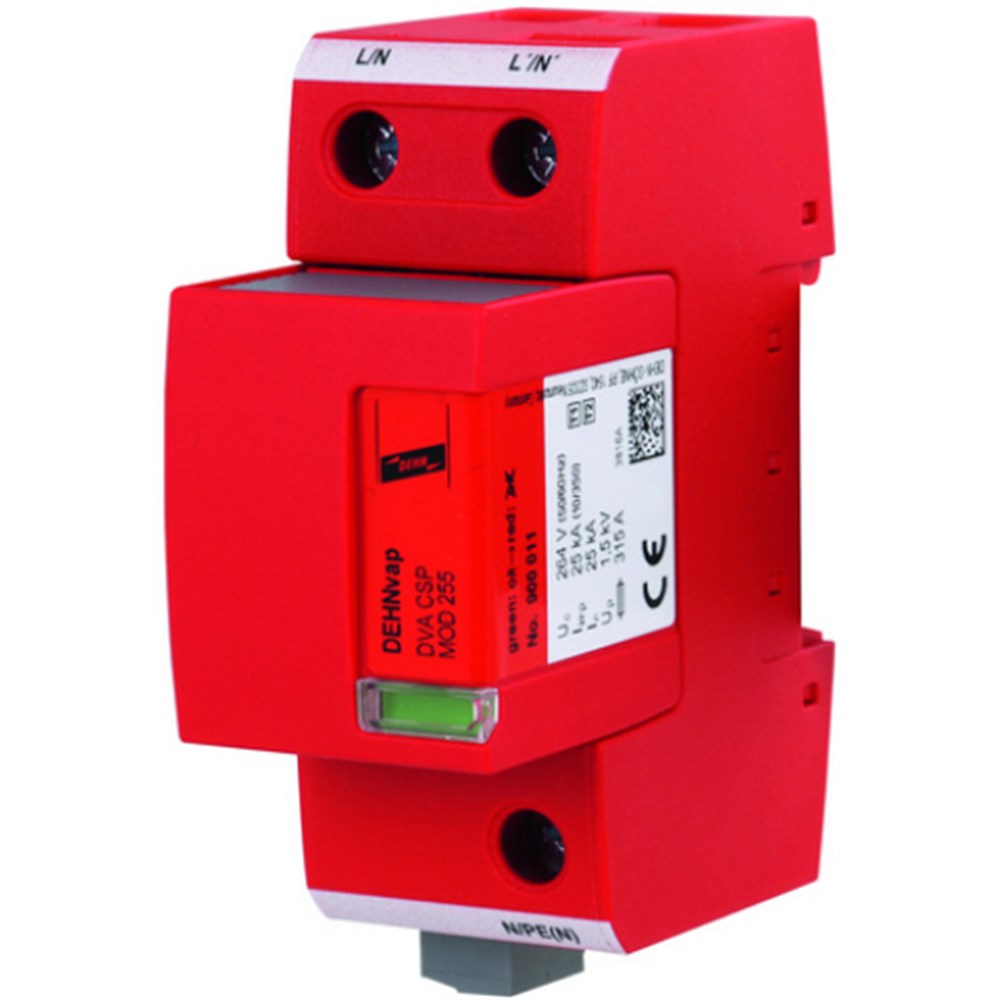

DEHN DVACSP1P255FM SPD T1+T2, 1+N/PE(N) In=25KA WITH C/O CONT.

Product Code: DVACSP1P255FM

The DEHNvap with MEN link is a single-pole combined lightning current and surge arrester designed for 230VAC(Un) systems. It features high follow current limitation and includes a remote signalling contact for monitoring purposes.

Technical Specifications

Brand DEHN
Article No. 900368
Circuit Type MSB
Degree of Protection IP20
Follow Current Extinguishing Capability AC (kArms) 25
Integral Fuse No
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25
Maximum Continuous Operating Voltage MCOV AC (V) 264
Mounting Type DIN Rail
No. of Modules 2
No. of Poles 1P+N/PE(N)
Nominal Discharge Current (8/20µs) - In (kA) 25/100
Nominal Voltage AC (V) 230
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 100
Signal C/O Contact Yes
Voltage Protection Level - Up (kV) ≤ 1.5
