Breaking Capacity AC (kA)	50
Maximum Continuous Voltage AC (V)	75
Maximum Continuous Voltage DC (V)	100
Mounting Method	DIN Rail 35mm
No. of Conductors	1
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	73W x 90H x 18D
Maximum Discharge Current (8/20µs) - Imax (kA)	40
Nominal Discharge Current (8/20µs) - In (kA)	10
Nominal Voltage AC (V)	60
Reference No.	952091
Standards and Approvals	EN 61643-11
Suitable For	Power Supply Systems
Weight (g)	120.4
Weight (kg)	0.11

Lightning & Surge Protection

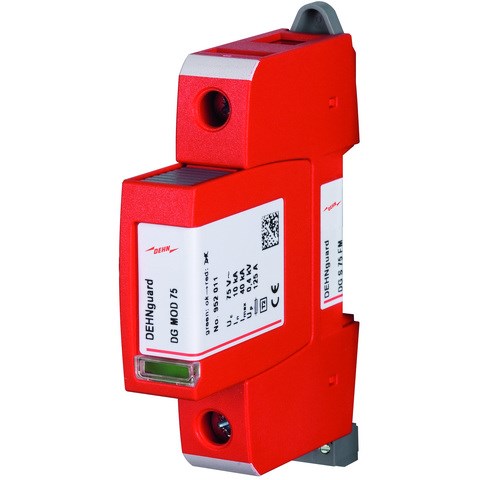

DEHN GUARD S FM SURGE ARRESTER DGS75FM
