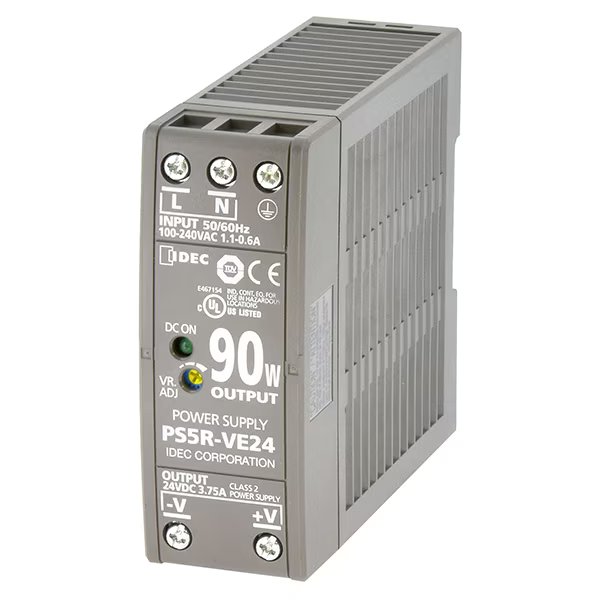

IDEC DC POWER SUPPLY, 90W, 24V DC 3.75A, RAIL MOUNT INPUT 85-264V AC / 100-370V DC PS5R-VE24

Product Code: PS5R-VE24

The IDEC PS5R-VE24 is a versatile DC power supply delivering 90W and 24V DC at 3.75A, suitable for a range of devices. It features wide input voltage compatibility, accepting both AC inputs from 85-264V and DC inputs from 100-370V. Designed for efficient power delivery, it ensures stable performance with its compact form factor allowing for space-efficient rail mounting. This power supply unit is built for long-term reliability and comes with a 5-year warranty.

Technical Specifications

Efficiency 89%
Input Current (A) 100V AC: 1.1A 230V AC: 0.6A
Output Power (W) 90
Overcurrent Protection 101%
Resistance to Shock (m/s²) 300
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Degree of Protection IP20
Dimensions (mm) 36W x 95H x 108D
Input Voltage AC (V) 100 - 240
Minimum Electrical Life 8 Years
Mounting Type DIN Rail
Operating Humidity 20 to 90%
Operational Temperature Range (°C) -25 to 65
Output Current (A) 3.75
Output Voltage DC (V) 24
Rated Frequency (Hz) 50/60
Warranty Period (Months) 60
Weight (g) 310
