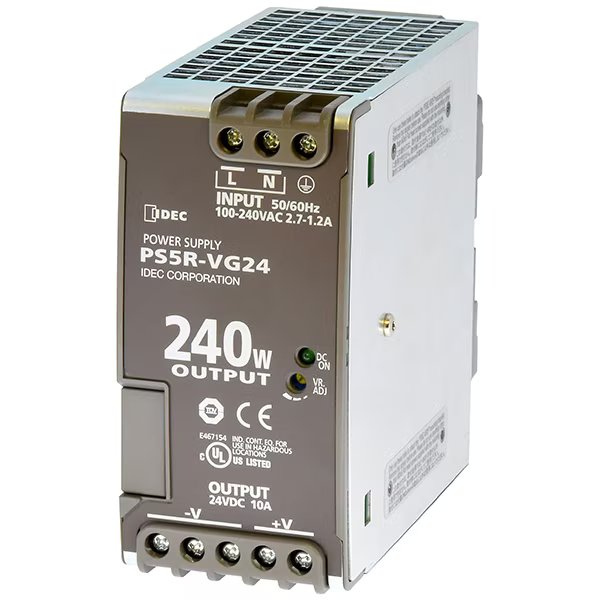

IDEC DC POWER SUPPLY, 240W, 24V DC 10A, RAIL MOUNT, SLIM-LINE INPUT 85-264V AC / 100-370V DC PS5R-VG24

Product Code: PS5R-VG24

The IDEC PS5R-VG24 is a slim-line DC power supply that delivers 240W and 24V DC at 10A, suitable for a range of devices. It features wide voltage compatibility, accepting inputs from 85-264V AC to 100-370V DC. Designed for efficient power delivery, it ensures stable performance with its compact design allowing for rail mounting and space-saving installation. This power supply unit is built for long-term reliability and comes with a 5-year warranty.

Technical Specifications

Efficiency 90%
Input Current (A) 100V AC: 2.7A 230V AC: 1.2A
Output Power (W) 240
Overcurrent Protection 105%
Resistance to Shock (m/s²) 300
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Degree of Protection IP20
Dimensions (mm) 60W x 125H x 125D
Input Voltage AC (V) 100 - 240
Minimum Electrical Life 8 Years
Mounting Type DIN Rail
Operating Humidity 20 to 90%
Operational Temperature Range (°C) -25 to 65
Output Current (A) 10
Output Voltage DC (V) 24
Rated Frequency (Hz) 50/60
Warranty Period (Months) 60
Weight (g) 960
