Product Code: NFZ62E21

NFZ contactor relays are used for switching auxiliary and control circuits. NFZ contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change NFZ contactor relays allow direct control by PLC-output ¥ 24 V DC 500 mA and obtain a reduced holding coil consumption. NFZ contactor relays withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz NFZ contactor relays have built-in surge protection and do not require additional surge suppressors - Poles: 8-pole contactor relays with a non-removable front-mounted auxiliary contact block (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.

Actuating Voltage Type	AC/DC
No. of Normally-closed Auxiliary Contacts	2
No. of Normally-open Auxiliary Contacts	6
Rated Operational Current (A)	3
Rated Operational Current AC-15 400V (A)	3
Brand	ABB
Auxiliary Contacts	6NO, 2NC
Connection Type	Screw Connection for Auxiliary Circuit
Dimensions (mm)	45W x 86H x 110.5D
Mode of Operation	AC/DC
Mounting Type	DIN Rail / Screw
Operating Voltage AC (V)	690
Rated Control Circuit Voltage AC (V)	24 - 60
Rated Control Circuit Voltage DC (V)	20 - 60
Rated Control Supply Voltage AC (V)	24
Rated Control Supply Voltage DC (V)	20
Rated Impulse Withstand Voltage (kV)	6
Rated Operational Voltage AC (V)	690
Rated Supply Voltage AC (V)	24
Standards and Approvals	IEC 60947-5-1, EN 60947-5-1

Contactors

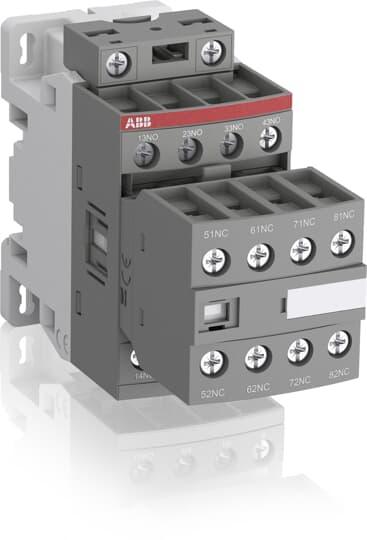

ABB NFZ62E-21 24-60V50/60HZ 20-60VDC CONTACTOR RELAY NFZ62E21
