Product Code: NF22E13

NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. - Poles: 4-pole contactor relays (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.

Actuating Voltage Type	AC/DC
No. of Normally-closed Auxiliary Contacts	2
No. of Normally-open Auxiliary Contacts	2
Rated Operational Current (A)	3
Rated Operational Current AC-15 400V (A)	3
Brand	ABB
Auxiliary Contacts	2NO+2NC
Connection Type	Screw Connection for Auxiliary Circuit
Degree of Protection	IP20
Dimensions (mm)	45W x 86H x 77D
Mounting Type	DIN Rail / Screw
No. of Poles	4
Operating Voltage AC (V)	690
Operational Temperature Range (°C)	-40 to +70
Rated Control Circuit Voltage AC (V)	100 - 250
Rated Control Circuit Voltage DC (V)	100 - 250
Rated Control Supply Voltage AC (V)	100
Rated Control Supply Voltage DC (V)	100
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	690
Rated Supply Voltage AC (V)	100
Storage Temperature (°C)	-60 to +80
Terminal Type	Screw Terminals

Contactors

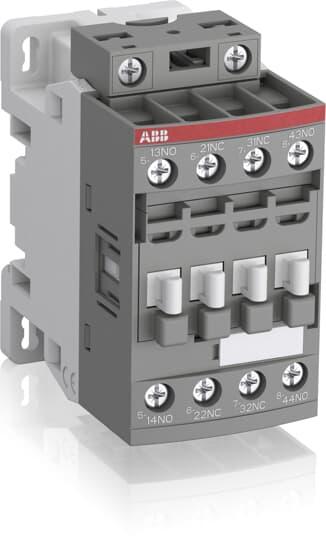

ABB NF22E-13 100-250V50/60HZ-DC CONTACTOR RELAY NF22E13
