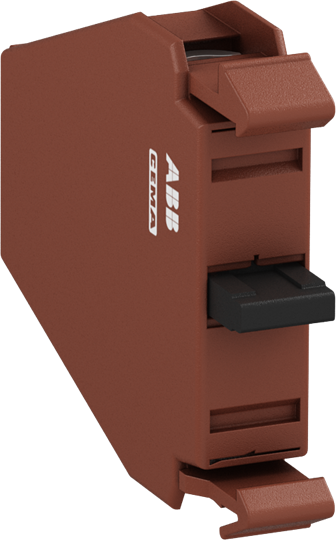

ABB CONTACT BLOCK DOUBLE FOR 3 AND 5 POS. HOLDER 1NO+1NC P9B11VN

Product Code: P9B11VN

The P9B11VN Contact Block is: Modular metal - Contact Block - Brown - Front mounting - 1NO - 1NC. This Contact Block is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.

Technical Specifications

Brand ABB
No. of Normally-closed Auxiliary Contacts 1
No. of Normally-open Auxiliary Contacts 1
Connecting Capacity Flexible with Ferrule 1/2 x 0.75 - 2.5mm² Flexible with Insulated Ferrule 1/2 x 0.75 - 2.5mm² Flexible 1/2 x 0.75 - 2.5mm² Solid 1/2 x 0.75 - 2.5mm²
Ambient Temperature Range (°C) -30 to 70
Colour Brown
Connection Type Screw Clamp
Degree of Protection Terminals: IP20
Dimensions (mm) 9.6W x 39.9H x 48D
Mounting Type Front Mount
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 690
Storage Temperature Range (°C) -40 to 70
Terminal Type Screw
Tightening Torque (Nm) 0.9
Weight (kg) 0.05
Wire Stripping Length (mm) 10
