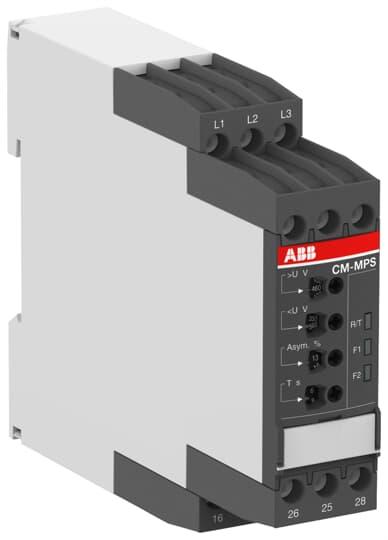

ABB CM-MPS.23P THREE-PHASE MONITORING RELAY MEASURING & CONTROL (L-N) 180 -280VAC 2CO

Product Code: CM-MPS.23P

This three-phase monitoring relay is designed to monitor all phase parameters, including over/undervoltage, phase unbalance, phase failure, and interrupted neutral. It has a measuring range of 180 ... 280 V AC (L-N) and operates with a rated control supply voltage of 180 ... 280 V AC. The relay is equipped with either 2 x 1 CO or 1 x 2 CO output options. Additionally, it features push-in terminals for easy installation.

Technical Specifications

Brand ABB
Contacts 2 x 1CO or 1 x 2CO (SPDT)
Degree of Protection IP50 (Housing), IP20 (Terminals)
Duty Time 100%
Measuring Range AC (V) Overvoltage: 3 x 240-280, Undervoltage: 3 x 180-220
Mounting Type DIN Rail
No. of Phases 3
Operational Temperature Range (°C) -25 to +60
Overvoltage Category III
Pollution Degree 3
Rated Control Supply Voltage AC (V) 3 x 180-280
Rated Frequency (Hz) 50/60/400
Terminal Type Push-in
Timing Range Start-up delay: 200ms, Tripping delay: 0s or 0.1-30s (ON or OFF)
