CL ENCODER TR1 TRU-TRAC ENCODER, M6 TR13KL61000V1HVK0STIP50

Product Code: TR13KL61000V1HVK0STIP50

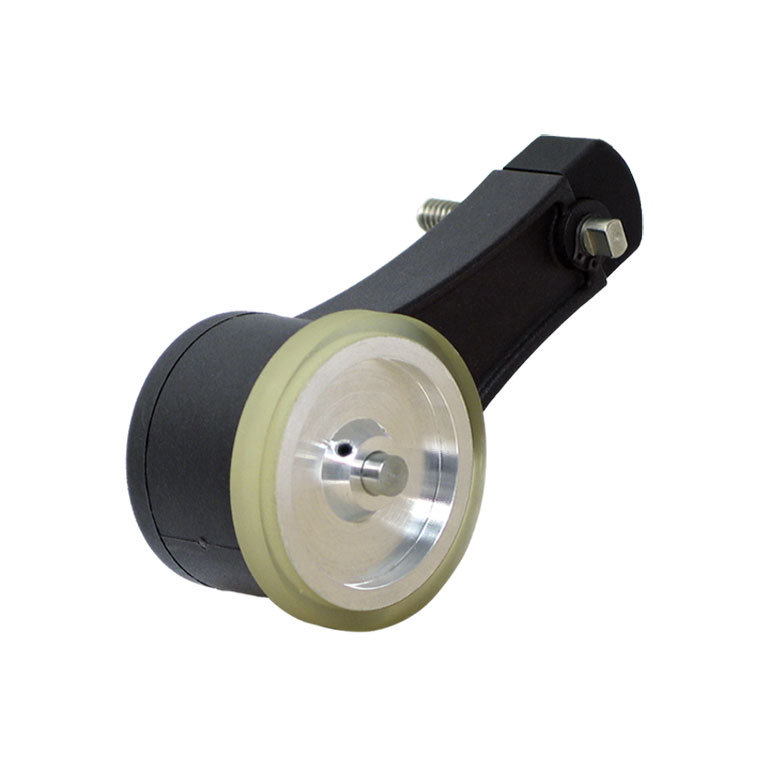

The TR1 Tru-Trac is a compact unit that combines an encoder, measuring wheel, and spring loaded torsion arm. It operates with an input voltage range of 5-28V DC and has a degree of protection rating of IP50 sealing.

Technical Specifications

Circumference (mm) 300
Input Current (mA) Maximum - 100
Maximum Shaft Speed (RPM) 6000
Output Type Line Driver
Pulses Per Revolution 1000
Brand CL ENCODER
Accuracy Within 0.017° mechanical or 1 arc-minute from true position (for CPR > 189)
Channels Quad + Z Marker A+B+Z
Connector Type 1/2M Cable with 8-Pin M12
Degree of Protection IP50
Housing Material Stainless steel fibers in a high temperature nylon composite
Input Voltage DC (V) 5 - 28
Operational Temperature Range (°C) -20 to +85
Rated Operational Voltage DC (V) 4.75 - 28
Series TR1
