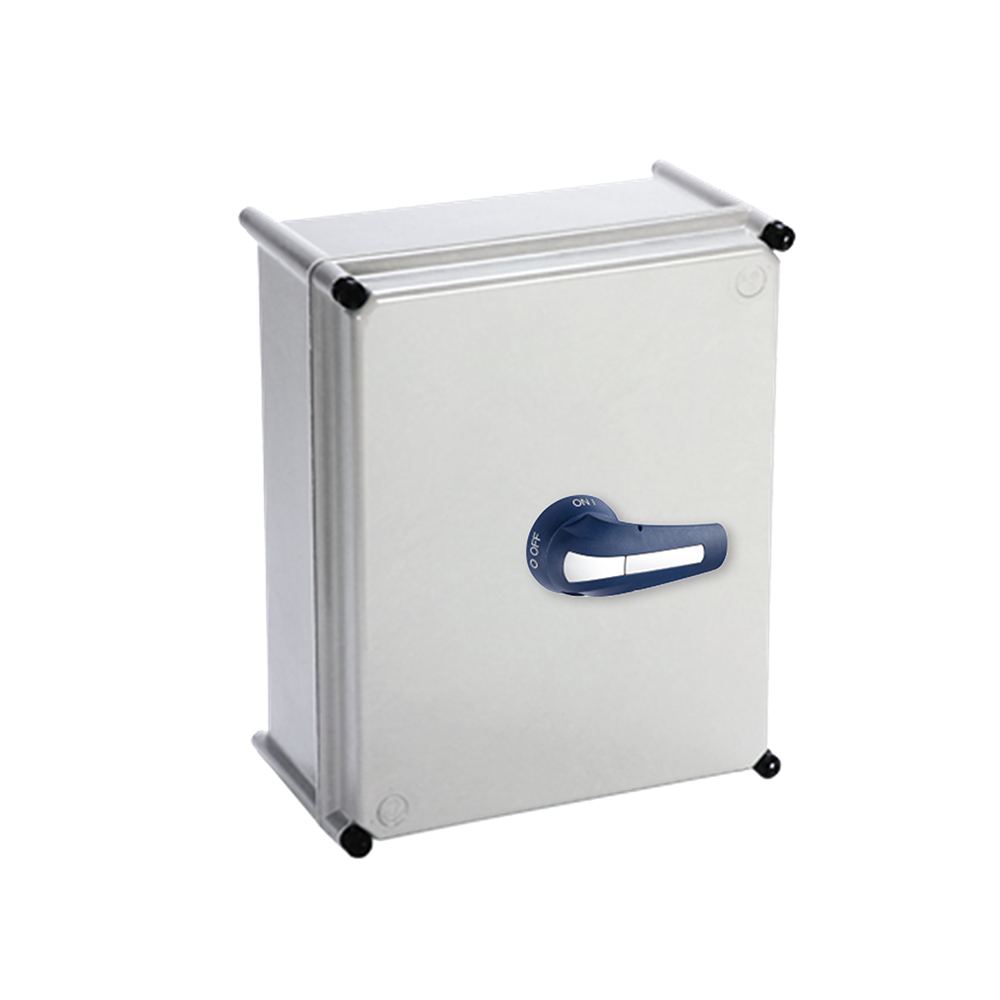

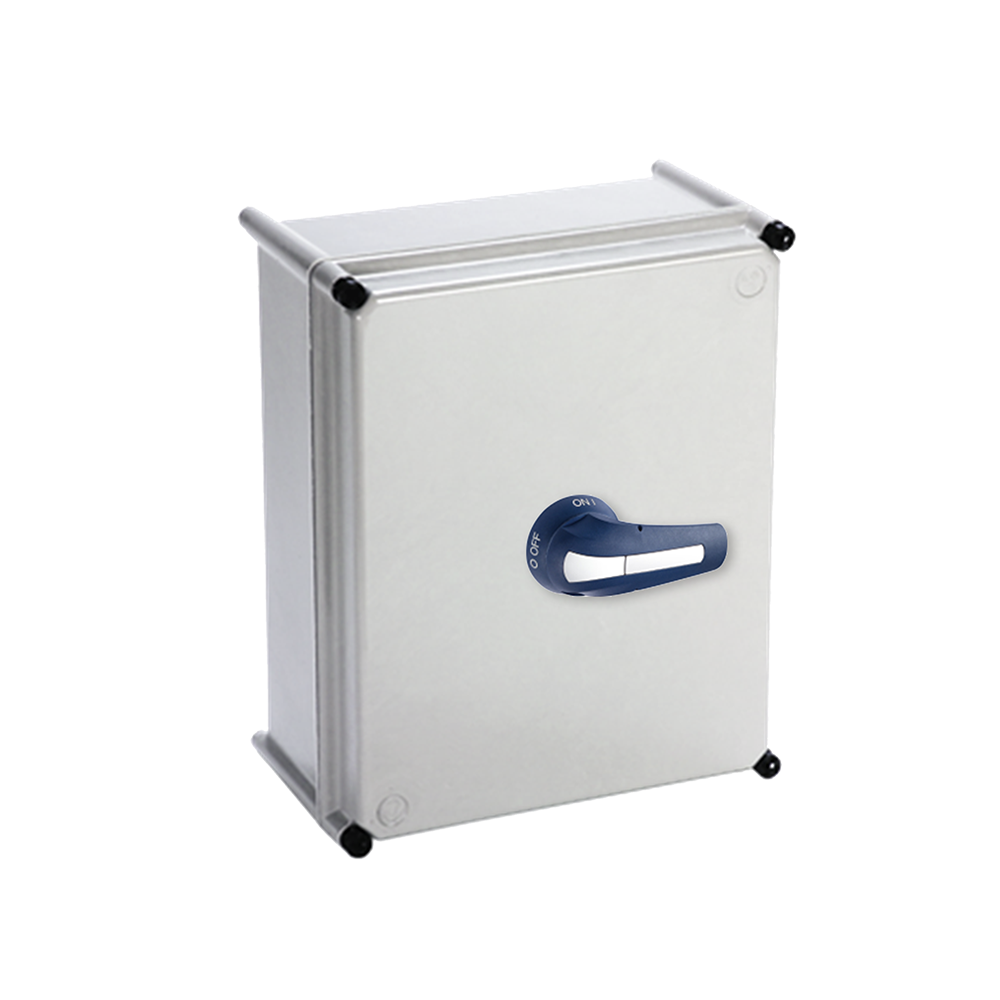

TELERGON CHANGEOVER SWITCH POLYCARBONATE ENCLOSED 4P 125A IP65 TCO1254P/E

Product Code: TCO1254P/E

This is a polyester (GRP) enclosed changeover switch. It operates at 415VAC and has 4 poles. The switch is rated for AC21A 125A and AC23A 125A. It has an IP65 rating, meaning it is protected against dust and water ingress. The dimensions of the switch are 372Hx302Wx175Dmm.

Technical Specifications

Brand TELERGON
Application Mains / Generator isolators
Degree of Protection IP65
Dimensions (mm) 372W x 302H x 175D
Electrical Endurance (Cycles) 1000
Enclosed Thermal Current (A) 125
Free Air Thermal Current (A) 125
Included Load side cable loops
Material Polycarbonate (Switch) Polyester (Cover)
Maximum Cable Cross Section (mm²) 70
Mechanical Endurance (Cycles) 10000
Minimum Cable Cross Section (mm²) 2.5
Mounting Type 1 x set 4 Polyamide Feet
No. of Poles 4
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-21A 415V (A) 125
Rated Operational Current AC-21A 500V (A) 125
Rated Operational Current AC-22A 415V (A) 125
Rated Operational Current AC-22A 500V (A) 125
Rated Operational Power AC-23A 415V (kW) 69.2
Rated Operational Voltage AC (V) 690
Standards and Approvals IEC EN 60947.3
Tightening Torque (Nm) 4
Weight (kg) 6.3
