Control Element Colour	Black
Interlockable	Yes
No. of Switches	1
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Transition Type	Open
Brand	ABB
Cable Cross Section (mm²)	0.75 - 10
Conventional Free-Air Thermal Current - Ith (A)	40
Degree of Protection	IP20
Dimensions (mm)	96W x 68H x 68D
Included	Knob Handle
Indication	I-O-II
Maximum Operational Voltage AC (V)	750
Mode of Operation	Front
Mounting Type	Front Mount 4-hole
NEMA Degree of Protection	1
No. of Poles	4
Pollution Degree	3
Power Loss (W)	1.6
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	750
Rated Operational Current AC-21A 415V (A)	40
Rated Operational Current AC-22A 415V (A)	40
Rated Operational Current AC-23A 380-415V (A)	23
Rated Operational Current AC-23A 415V (A)	23
Rated Operational Power AC-23A 380-415V (kW)	11
Rated Operational Power AC-23A 415V (kW)	11
Rated Operational Voltage (V)	750
Rated Operational Voltage AC (V)	415
Rated Short-Time Withstand Current - Icw (kA)	0.5
Suitable For	Distribution Board Installation
Terminal Type	Screw
Type	Main Switch
Weight (kg)	0.31

Changeover Switches

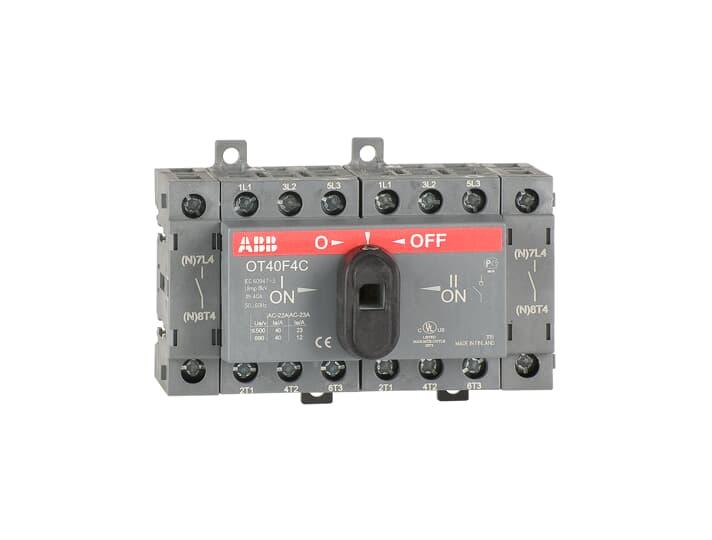

ABB OT40F4C CHANGE-OVER SWITCH OT40F4C
