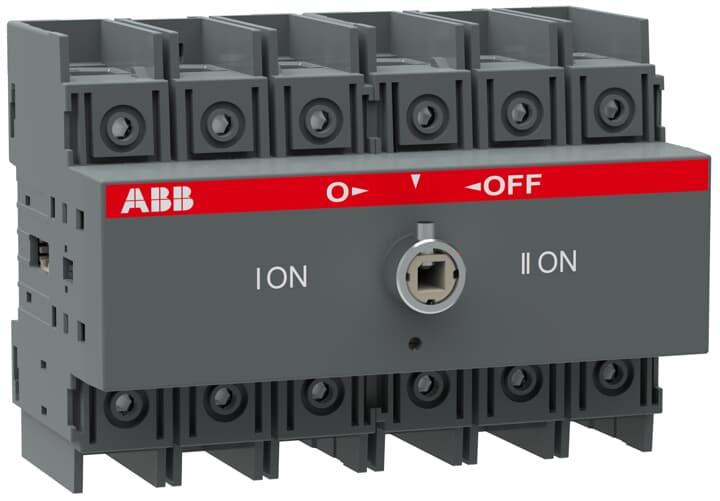

ABB OT100F3C CHANGE-OVER SWITCH OT100F3C
Zoom
Zoom
ABB OT100F3C CHANGE-OVER SWITCH OT100F3C
Product Code: OT100F3C
100A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
Technical Specifications
Control Element Colour
Black
Interlockable
Yes
No. of Switches
1
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Transition Type
Open
Brand
ABB
Cable Cross Section (mm²)
10 - 70
Conventional Free-Air Thermal Current - Ith (A)
100
Degree of Protection
IP20
Dimensions (mm)
140W x 100H x 86D
Indication
I-O-II
Maximum Operational Voltage AC (V)
750
Mode of Operation
Front
Mounting Type
Front Mount 4-hole
NEMA Degree of Protection
1
No. of Poles
3
Pollution Degree
3
Power Loss (W)
4
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage (V)
750
Rated Operational Current AC-21A 415V (A)
100
Rated Operational Current AC-22A 415V (A)
100
Rated Operational Current AC-23A 380-415V (A)
80
Rated Operational Current AC-23A 415V (A)
80
Rated Operational Power AC-23A 380-415V (kW)
37
Rated Operational Power AC-23A 415V (kW)
37
Rated Operational Voltage (V)
750
Rated Operational Voltage AC (V)
415
Rated Short-Time Withstand Current - Icw (kA)
2.5
Suitable For
Distribution Board Installation
Terminal Type
Screw
Type
Main Switch
Weight (kg)
0.9
Documents
Datasheet
IPD Product Catalogue V17
