Control Element Colour	Black
Interlockable	Yes
No. of Switches	1
Padlockable	Padlockable in O-position
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Transition Type	Open
Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	1250
Degree of Protection	IP20
Dimensions (mm)	400W x 306H x 309D
Handle Type	Pistol
Included	Handle, Shaft
Indication	I-O-II
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front
Mounting Type	Front Mount 4-hole
NEMA Degree of Protection	1
No. of Poles	3
Pollution Degree	3
Power Loss (W)	29
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-21A 415V (A)	1250
Rated Operational Current AC-22A 415V (A)	1250
Rated Operational Current AC-23A 380-415V (A)	1250
Rated Operational Current AC-23A 415V (A)	1250
Rated Operational Power AC-23A 380-415V (kW)	710
Rated Operational Power AC-23A 415V (kW)	710
Rated Operational Voltage (V)	1000
Rated Operational Voltage AC (V)	415
Rated Short-Time Withstand Current - Icw (kA)	50
Suitable For	Distribution Board Installation
Terminal Type	Bolt
Type	Main Switch
Weight (kg)	48

Changeover Switches

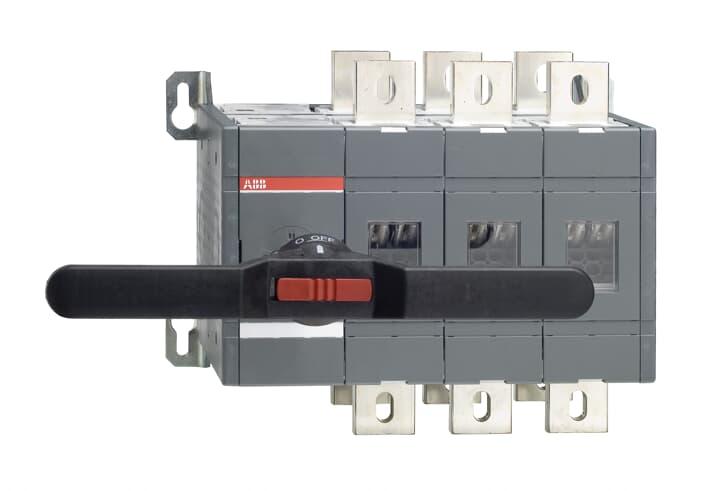

ABB OT1250E03CP CHANGE-OVER SWITCH OT1250E03CP
