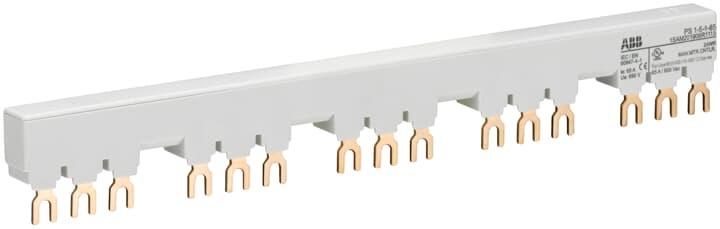

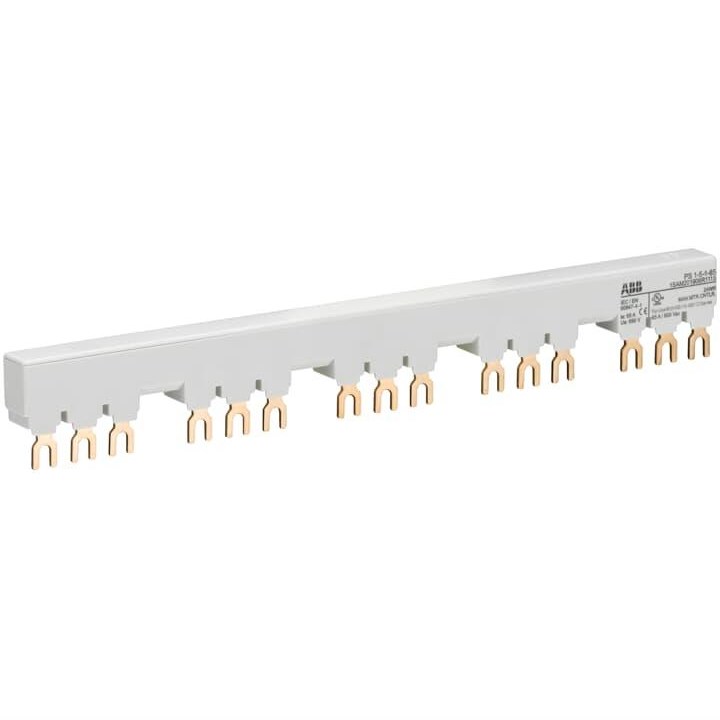

ABB PS1-5-1-65 Busbar 3-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-5-1-65

  • Rated for 65 A current capacity
  • Compact dimensions: 257.5 x 32.3 x 13 mm
  • Operates in -25 to 70°C ambient temp
  • Compatible with MS116, MS132, MO132 starters
  • Meets IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 32.3 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 1
Number of Mountable Devices 5
Number of Poles 3
Phase 3
Rated Current 65 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.108 kg
Width 257.5 mm

Description

<p>When considering an accessory for your electrical systems, it&amp;#39;s crucial to evaluate the specifications that align with your technical requirements. This particular accessory is designed to complement motor starters such as the MS116, MS132, and MO132, offering a reliable addition to industrial and commercial setups.</p><p>With a rated current of 65 A, this accessory ensures robust performance in demanding environments. Its dimensions—257.5 mm in width, 32.3 mm in height, and 13 mm in depth—make it compact yet efficient for integration into existing systems without occupying excessive space. The grey color provides a neutral appearance that blends seamlessly into various settings.</p><p>In terms of safety and compliance, this product meets several international standards: IEC/EN 60947-1 and IEC/EN 60947-4-1 for Europe and UL 60947-1 and UL 60947-4-1 for North America. These certifications underscore its reliability and adherence to rigorous quality benchmarks.</p><p>Weighing just 0.108 kg, it’s lightweight yet capable of handling significant electrical loads with a rated impulse withstand voltage of 6 kV. This feature is critical when dealing with transient overvoltages that can occur in electrical circuits.</p><p>The accessory&amp;#39;s rated short circuit current stands at an impressive 100 kA which speaks volumes about its durability under extreme conditions. Additionally, it supports both AC (up to 690 V) and DC (up to 250 V) applications providing versatility across different power sources.</p><p>Designed with three poles and featuring a fork connection type this product ensures secure connections within your system setup enhancing operational stability.</p><p>Protection against dust ingress is assured by its IP20 rating while the degree of pollution classified as IP3 indicates suitability for environments where conductive pollution might be present but not excessively so.</p><p>Operating efficiently across a wide ambient temperature range from -25&amp;#176;C to +70&amp;#176;C this accessory is well-suited for diverse climates making it ideal for use throughout Australia whether you&amp;#39;re dealing with cooler southern regions or hotter northern territories.</p><p>Overall these features combine to offer an accessory that&amp;#39;s not only functional but also dependable ensuring seamless operation within your electrical infrastructure while maintaining compliance with essential industry standards ensuring peace of mind during installation maintenance or upgrades MPN: [Manufacturer Part Number if available].</p>
