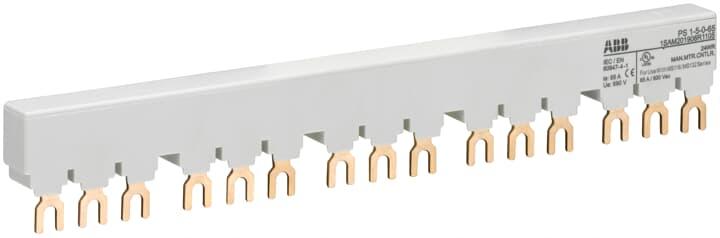

ABB PS1-5-0-65 Busbar 3-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-5-0-65

  • Supports up to 65 A current
  • Compact size: 221.5 x 32.3 x 13 mm
  • Rated voltage: 690/250 VAC/VDC
  • Compatible with MS116, MS132, MO132 starters
  • High protection: IP20, withstands up to 6 kV
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 32.3 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 0
Number of Mountable Devices 5
Number of Poles 3
Phase 3
Rated Current 65 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.098 kg
Width 221.5 mm

Description

<p>When selecting the right accessory for your industrial or commercial applications, it&amp;#39;s essential to focus on specifications and compatibility. This particular accessory is designed with precision, providing robust performance in demanding environments.</p><p>With a rated current of 65 A, this accessory ensures efficient operation across various settings. Its compact design features dimensions of 221.5 mm in width, 32.3 mm in height, and 13 mm in depth, making it suitable for installations where space is at a premium. The grey color offers a neutral aesthetic that seamlessly integrates into existing setups.</p><p>Engineered to meet rigorous standards and approvals such as IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, and UL 60947-4-1, this product assures compliance with international safety and quality benchmarks. Weighing just 0.098 kg, it is lightweight yet does not compromise on durability or performance.</p><p>The rated impulse withstand voltage stands at an impressive 6 kV while the rated short circuit current reaches up to 100 kA—parameters that highlight its capability to handle high-stress electrical situations effectively. It supports both AC and DC applications with a rated voltage of up to 690/250 VAC/VDC.</p><p>Designed with three poles and a module width of 14 mm along with a fork connection type, it offers flexibility during installation and integration into existing systems. The degree of pollution rating at IP3 combined with an IP20 degree of protection ensures reliability even under challenging environmental conditions.</p><p>This accessory can operate efficiently within ambient temperatures ranging from -25&amp;#176;C to +70&amp;#176;C—a testament to its resilience against temperature fluctuations commonly encountered in industrial settings.</p><p>Moreover, this accessory is compatible with MS116, MS132, and MO132 motor starters—providing versatility across different equipment models while maintaining optimal functionality throughout its lifecycle.</p><p>By focusing on these detailed specifications rather than vague claims or emotions-driven marketing language typical for consumer products—you can be confident that this accessory will meet your technical requirements reliably over time without unnecessary fuss or complication.</p>
