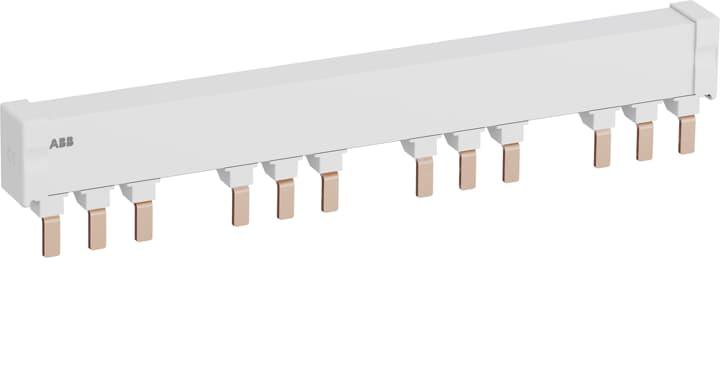

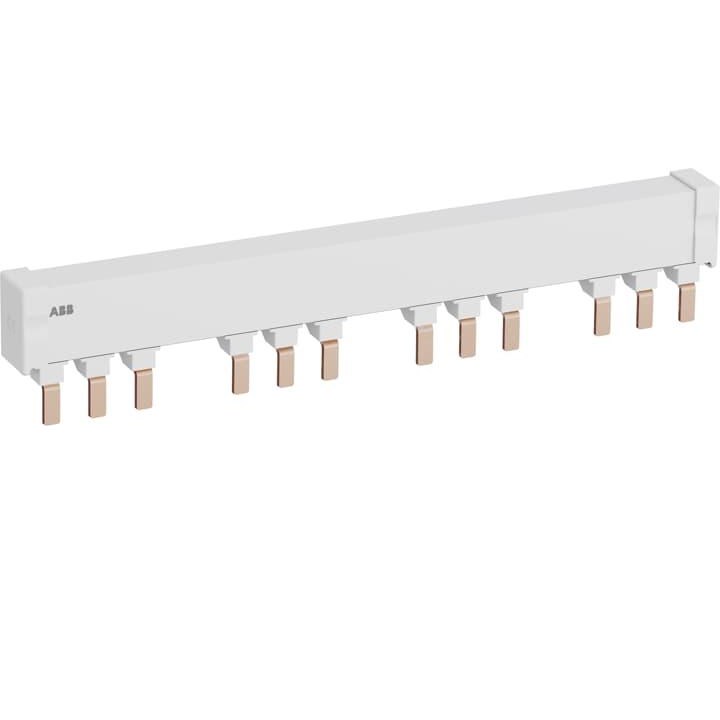

ABB PS2-4-2-125 Busbar 3-P 125A 690VAC IP20 For: MS165 MO165 Motor Starters

Product Code: PS2-4-2-125

  • Accessory for MS165, MO165 motor starters
  • Handles up to 125 A current
  • Compact size: 227x53x22 mm
  • Operates in -25 to 40°C environment
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 40 deg C
Colour Grey
Connection Type Pin
Degree of Protection IP20
Depth 22 mm
Height 53 mm
Module Width 18 mm
Number of Lateral Auxiliary Contacts 2
Number of Mountable Devices 4
Number of Poles 3
Phase 3
Rated Current 125 A
Rated Impulse Withstand Voltage 8 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690 VAC
Standards and Approvals IEC/EN 60947-4-1
Suitable For Use With MS165, MO165 Motor Starters
Weight 0.277 kg
Width 227 mm

Description

<p>When you&amp;#39;re considering a reliable accessory for your industrial or commercial setup, this product stands out with its robust specifications and compatibility. Designed to cater to demanding environments, it offers a comprehensive solution that aligns perfectly with technical requirements.</p><p>This accessory is engineered to handle a rated current of 125 A, making it suitable for substantial electrical loads. With dimensions of 227 mm in width, 53 mm in height, and 22 mm in depth, it provides a compact yet efficient footprint. Its grey color ensures it blends seamlessly into most settings without drawing unnecessary attention.</p><p>Compliance with IEC/EN 60947-4-1 standards underscores the quality and reliability you can expect from this product. Weighing just 0.277 kg, it&amp;#39;s lightweight but doesn&amp;#39;t compromise on performance or durability.</p><p>The rated impulse withstand voltage of 8 kV indicates its ability to endure transient overvoltages effectively, ensuring safety and longevity in operation. Additionally, the rated short circuit current capacity of 100 kA further enhances its robustness by providing excellent protection against potential faults.</p><p>Operating at a rated voltage of up to 690 VAC across three poles guarantees versatile application possibilities within various electrical systems. The module width measures at an efficient 18 mm while maintaining ease of integration into existing setups.</p><p>Connection is facilitated through pin type connectors which are known for their secure fitment and reliability under operational stress. With an IP20 degree of protection rating, this accessory is safeguarded against solid objects larger than 12 mm and offers adequate protection against accidental contact.</p><p>Designed for ambient temperatures ranging from -25 to +40 degrees Celsius, it performs reliably across diverse climates—ideal for both indoor installations where temperature control might be less stringent or outdoor environments subject to fluctuations.</p><p>Moreover, this accessory is specifically crafted for use with MS165 and MO165 motor starters—ensuring seamless integration as part of your broader system infrastructure without hassle or need for additional modifications.</p><p>Overall, if you’re seeking an accessory that combines functionality with compliance and adaptability within industrial contexts—this product ticks all the right boxes while offering peace of mind through adherence to international standards and approvals.</p>
