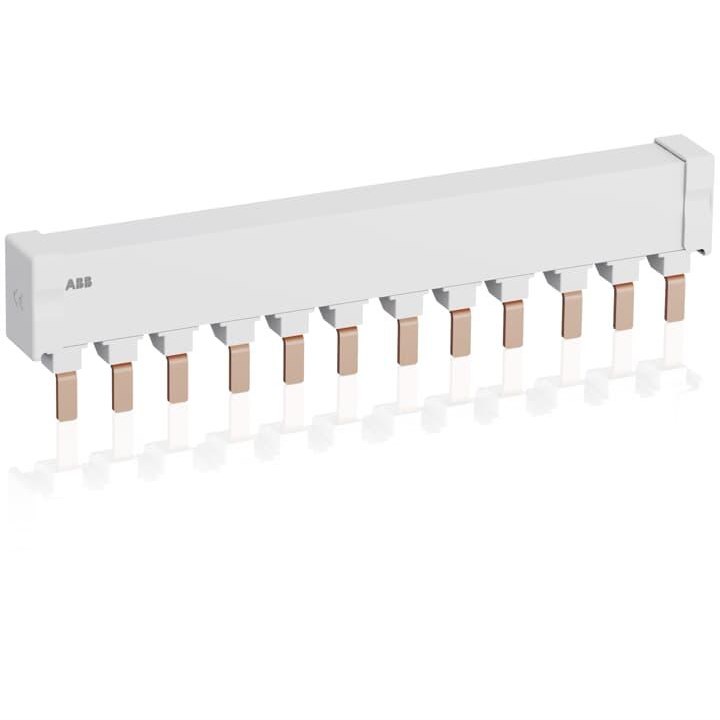

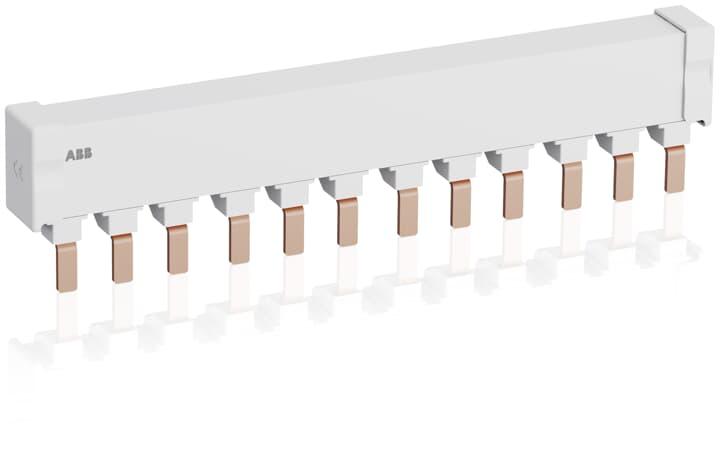

ABB PS2-4-0-125 BUSBAR PS2-4-0-125

Product Code: PS2-4-0-125

PS2-4-0-125 3-phase busbars ensure a quick and safe connection of 4 MS165 manual motor starters without lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 125 A.

Technical Specifications

Module Width (mm) 18
No. of Mountable Devices 4
Rated Operational Current (A) 125
Brand ABB
Colour Grey
Connection Type Pin
Degree of Protection IP20
Length (mm) 225
Maximum Operational Voltage AC (V) 690
No. of Phases 3
No. of Poles 3
Rated Conditional Short-Circuit Current - Inc (kA) 100
Rated Impulse Withstand Voltage (kV) 8
Rated Operational Voltage AC (V) 690
Rated Short-Time Withstand Current - Icw (kA) 100
Rated Uninterrupted Current - Iu (A) 125
Suitable For 4 Devices
Width in Number of Modular Spacings 12.8
