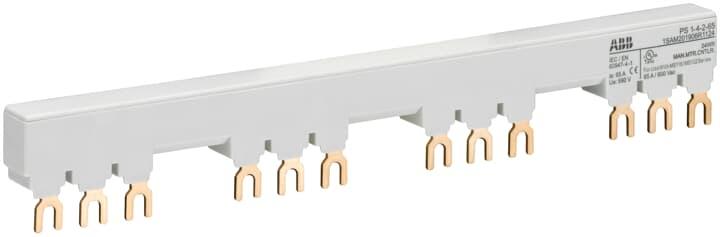

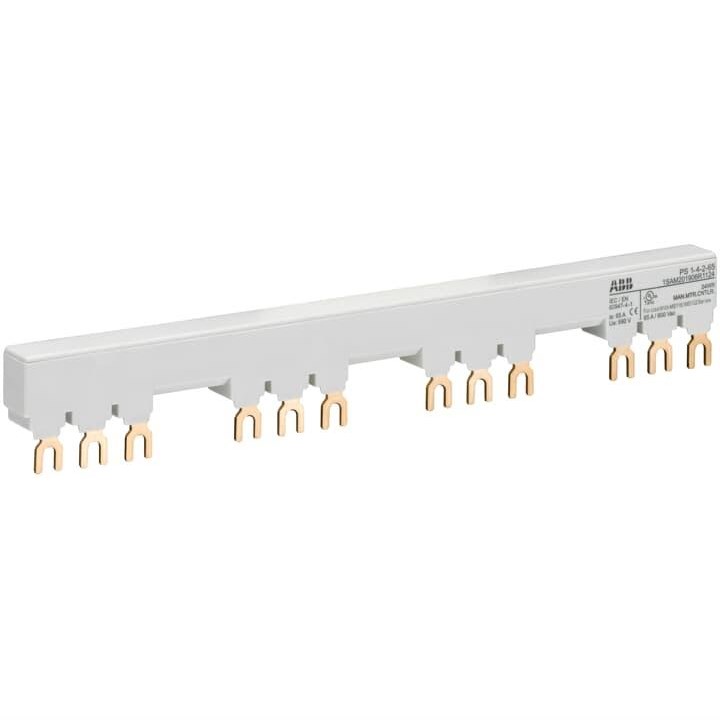

ABB PS1-4-2-65 Busbar 3-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-4-2-65

  • Suitable for MS116, MS132, MO132 starters
  • Rated current of 65 A
  • Compact size: 230.5 x 32.3 x 13 mm
  • High short circuit rating: 100 kA
  • Operates in -25 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 32.3 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 2
Number of Mountable Devices 4
Number of Poles 3
Phase 3
Rated Current 65 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.095 kg
Width 230.5 mm

Description

<p>When it comes to industrial and commercial electrical systems, ensuring compatibility and reliability is paramount. This accessory offers a robust solution for professionals seeking dependable performance in demanding environments. Designed with precision, this accessory is suitable for use with MS116, MS132, and MO132 motor starters.</p><p>With a rated current of 65 A, this accessory provides ample capacity for various applications. Its dimensions are thoughtfully designed: at 230.5 mm wide, 32.3 mm high, and 13 mm deep, it efficiently fits into compact spaces without compromising functionality. The grey color ensures it blends seamlessly with other equipment.</p><p>The product meets rigorous standards such as IEC/EN 60947-1 and IEC/EN 60947-4-1 as well as UL standards UL 60947-1 and UL 60947-4-1. These certifications guarantee compliance with international safety requirements, offering peace of mind during installation and operation.</p><p>Weighing only 0.095 kg, the lightweight design does not sacrifice durability or performance. With a rated impulse withstand voltage of up to 6 kV and a rated short circuit current of an impressive 100 kA, this accessory is built to handle significant electrical stress while maintaining stability.</p><p>Operating at voltages up to 690/250 VAC/VDC across three poles ensures versatility in usage scenarios. The fork connection type facilitates secure attachment within your system setup.</p><p>Built for resilience against environmental factors, the device features an IP20 degree of protection which safeguards against solid objects larger than 12mm but does not protect against liquids—ideal for controlled indoor settings where dust ingress needs management without exposure to moisture risks.</p><p>Additionally, its IP3 degree of pollution rating signifies that it can operate effectively in environments where conductive pollution occurs or where dry non-conductive pollution might become conductive due to condensation—a common scenario in industrial settings.</p><p>This accessory operates efficiently within ambient temperatures ranging from -25&amp;#176;C to +70&amp;#176;C making it suitable for diverse climates found across Australia—from cooler southern regions through warmer northern territories—ensuring reliable performance year-round regardless of external conditions.</p><p>In summary this product stands out by combining practical dimensions comprehensive safety certifications high operational ratings versatile application support all wrapped into one reliable package ready-made for integration alongside MS116 MS132 MO132 motor starters delivering consistent results every time you need them most.</p>
