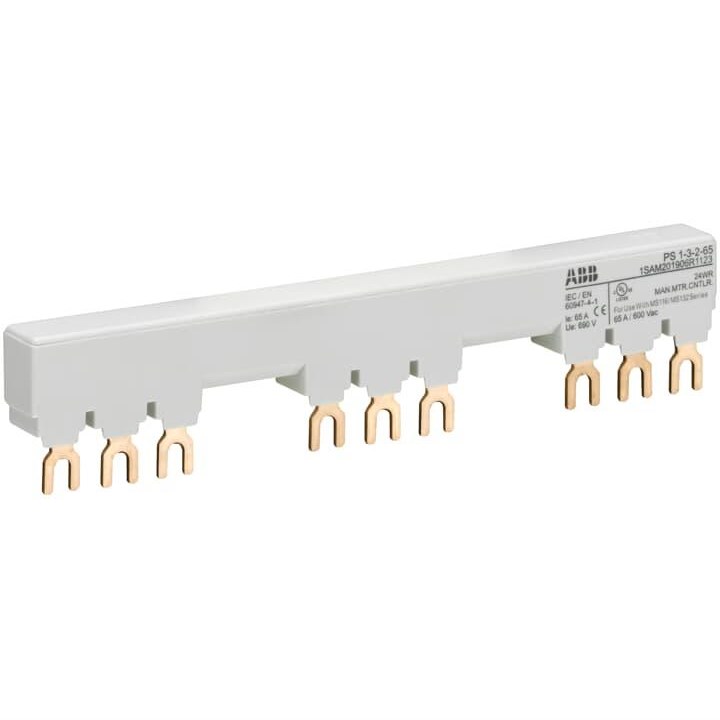

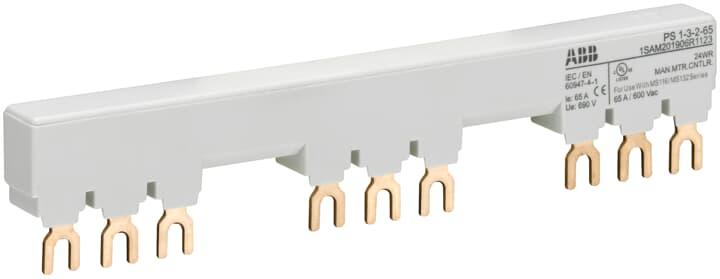

ABB PS1-3-2-65 BUSBAR PS1-3-2-65

Product Code: PS1-3-2-65

PS1-3-2-65 3-phase busbars ensure a quick and safe connection of 3 MS132 or MS116 manual motor starters with 2 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 65 A.

Technical Specifications

Module Width (mm) 14
No. of Lateral Auxiliary Contacts 2
No. of Mountable Devices 3
Rated Operational Current (A) 65
Brand ABB
Colour Grey
Connection Type Fork
Degree of Protection IP20
Length (mm) 167.5
Maximum Operational Voltage AC (V) 690
No. of Phases 3
No. of Poles 9
Rated Conditional Short-Circuit Current - Inc (kA) 100
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Voltage AC (V) 690
Rated Operational Voltage DC (V) 250
Rated Short-Time Withstand Current - Icw (kA) 100
Rated Uninterrupted Current - Iu (A) 65
Suitable For 3 Devices
Width in Number of Modular Spacings 9.57
