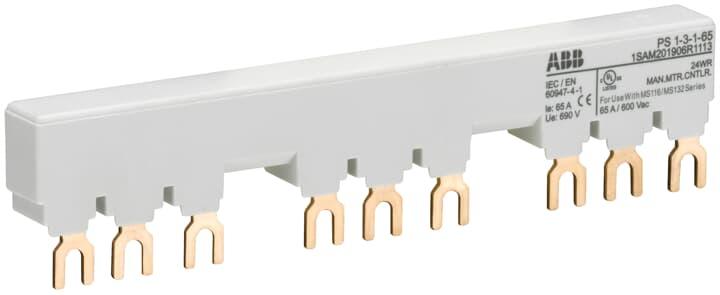

ABB PS1-3-1-65 Busbar 9-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-3-1-65

  • Supports 65 A current capacity
  • Compact design: 149.5 x 32.3 x 13 mm
  • Rated voltage up to 690/250 VAC/VDC
  • Compatible with MS116, MS132, MO132 starters
  • High protection: IP20 and IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 32.3 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 1
Number of Mountable Devices 3
Number of Poles 9
Phase 3
Rated Current 65 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.06 kg
Width 149.5 mm

Description

<p>For those in the electrical engineering and automation sectors, selecting the right accessory is crucial to enhancing system efficiency and reliability. This accessory, with its robust specifications, is designed to meet demanding industrial and commercial requirements.</p><p>With a rated current of 65 A, it offers reliable performance for various applications. Its compact dimensions—149.5 mm in width, 32.3 mm in height, and 13 mm in depth—make it an ideal choice for installations where space is at a premium. The grey color provides a neutral aesthetic that blends seamlessly into most setups.</p><p>This accessory complies with stringent standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, and UL 60947-4-1, ensuring safety and quality across international markets. Weighing only 0.06 kg, it&amp;#39;s lightweight yet durable enough to withstand rigorous conditions.</p><p>The rated impulse withstand voltage of 6 kV highlights its capability to handle transient overvoltage events effectively. Furthermore, its impressive rated short circuit current of up to 100 kA ensures robustness under fault conditions.</p><p>Operating at a rated voltage of either 690 VAC or 250 VDC makes this accessory versatile for different power systems. With nine poles available for connections via the fork type connection method, it supports complex wiring configurations while maintaining simplicity.</p><p>The degree of protection offered by IP20 safeguards against solid objects larger than 12mm but requires additional enclosure for complete water protection if needed in certain environments. Additionally, the degree of pollution rating at IP3 indicates suitability even in moderately polluted atmospheres.</p><p>Designed to operate efficiently within ambient temperatures ranging from -25&amp;#176;C to +70&amp;#176;C, this product is well-suited for diverse climatic conditions found across Australia—from chilly southern regions to warmer northern territories.</p><p>Compatibility with MS116 MS132 and MO132 motor starters ensures seamless integration into existing systems without hassle making it a versatile component that can enhance your electrical setup&amp;#39;s functionality without compromising on safety or performance.</p>
