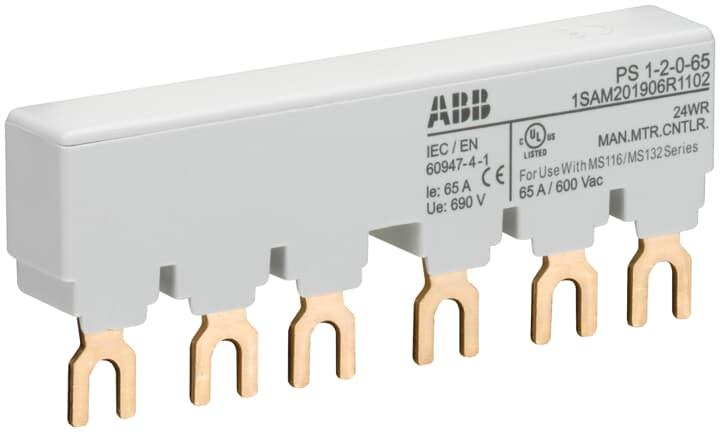

ABB PS1-2-0-65 Busbar 3-P 65A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-2-0-65

  • Suitable for MS116, MS132, MO132 starters
  • Handles up to 65 A current
  • Rated voltage: 690/250 VAC/VDC
  • Compact size: 86.5 x 32.3 x 13 mm
  • Meets IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Busbar
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour Grey
Connection Type Fork
Degree of Pollution IP3
Degree of Protection IP20
Depth 13 mm
Height 32.3 mm
Module Width 14 mm
Number of Lateral Auxiliary Contacts 0
Number of Mountable Devices 2
Number of Poles 3
Phase 3
Rated Current 65 A
Rated Impulse Withstand Voltage 6 kV
Rated Short Circuit Current 100 kA
Rated Voltage 690/250 VAC/VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
Suitable For Use With MS116, MS132 and MO132 Motor Starters
Weight 0.034 kg
Width 86.5 mm

Description

<p>When it comes to selecting the right accessory for your electrical systems, understanding the specifications and compatibility is crucial. This particular accessory stands out with its robust design and reliable performance metrics, making it a solid choice for industrial and commercial applications.</p><p>Rated for a current of 65 A, this accessory ensures efficient operation under demanding conditions. Its compact dimensions—86.5 mm in width, 32.3 mm in height, and 13 mm in depth—allow for easy integration into existing setups without occupying excessive space. The grey color provides a neutral appearance that seamlessly blends with most equipment environments.</p><p>In terms of standards and approvals, this product complies with IEC/EN 60947-1, IEC/EN 60947-4-1 as well as UL 60947-1 and UL 60947-4-1 certifications. These endorsements underscore its adherence to rigorous international safety and performance standards.</p><p>Weighing just 0.034 kg, this lightweight component is engineered to withstand significant electrical stress with a rated impulse withstand voltage of up to 6 kV. Additionally, it boasts an impressive rated short circuit current capacity of up to 100 kA.</p><p>The rated voltage spans both AC and DC applications at levels of up to 690 VAC or 250 VDC respectively, offering versatility across various power systems. With three poles available within its structure, it provides adequate support for complex electrical configurations.</p><p>Its module width of just 14 mm further highlights its space-efficient design while maintaining functionality. Connection is facilitated through a fork type connection system which simplifies installation processes especially when integrating with compatible motor starters such as MS116, MS132, and MO132 models.</p><p>Environmental resilience is another key feature; the accessory operates effectively within ambient temperatures ranging from -25&amp;#176;C to +70&amp;#176;C ensuring reliability in diverse climatic conditions typical in many Australian settings.</p><p>Safety features include an IP20 degree of protection which safeguards against accidental contact by fingers or similar objects plus an IP3 degree of pollution rating indicating suitability even where moderate levels of contamination may be present.</p><p>In summary this accessory offers dependable performance backed by stringent compliance measures all packed into a user-friendly format designed specifically for seamless integration alongside specific motor starter models mentioned above ensuring both flexibility &amp;amp; reliability throughout its operational lifespan suitable across myriad installations requiring precise technical solutions tailored towards optimizing overall system efficacy without compromise on quality or safety parameters essential within professional environments today</p>
