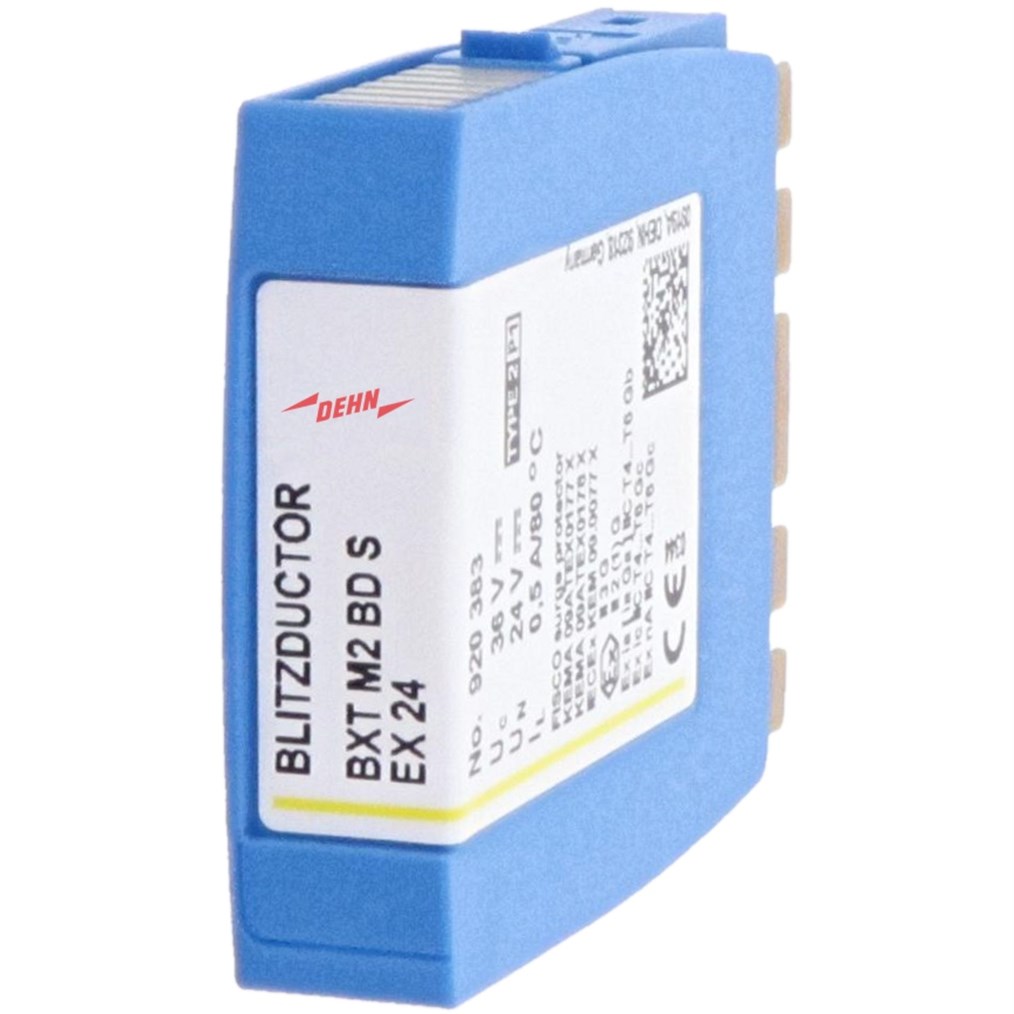

DEHN BLITZDUCTOR XT COMBINED LIGHTN AND SURGE ARRESTER MOD 920383 BXTM2BDSEX24

Product Code: BXTM2BDSEX24

Space-saving surge arrester module for protecting one pair of intrinsically safe measuring circuits and bus systems, direct or indirect shield earthing, insulation strength > 500 V line-earth.

Technical Specifications

Maximum Continuous Voltage AC (V) 36
Maximum Continuous Voltage DC (V) 25.4
Nominal Voltage (V) 24
Brand DEHN
Colour Blue
Degree of Protection IP20
Nominal Discharge Current (8/20µs) - In (kA) 5
Operational Temperature Range (°C) -40 °C to +80 °C
Weight (g) 50
