Product Series	LMP 331
Diaphragm Material	Stainless steel 1.4435 (316L)
Electrical Connection	Male and female plug ISO 4400
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Mechanical Stability	Vibration: 10 g, 25 ... 2000 Hz according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Operational Life	100 million load cycles.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Pressure (mH2O)	2.5
Pressure Port	Stainless steel 1.4404 (316L)
Response Time (ms)	≤ 10
Seals	FKM
Accuracy	Standard for pN < 0.4 bar: 0.50 % FSO
Application	Plant and machine engineering. Energy industry. Environmental engineering (water – sewage – recycling).
Version	Standard

Level Sensors

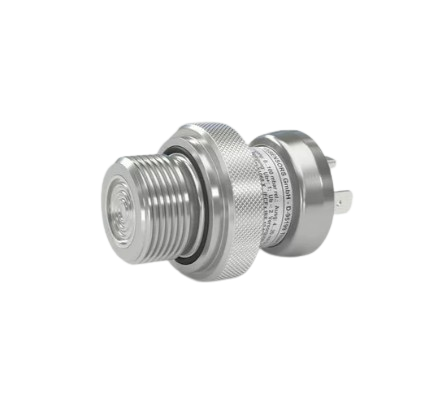

BD SENSORS LMP331 SCREW-IN TRANSMITTERLMP331 SCREW-IN TRANSMITTER 431250011111005000
