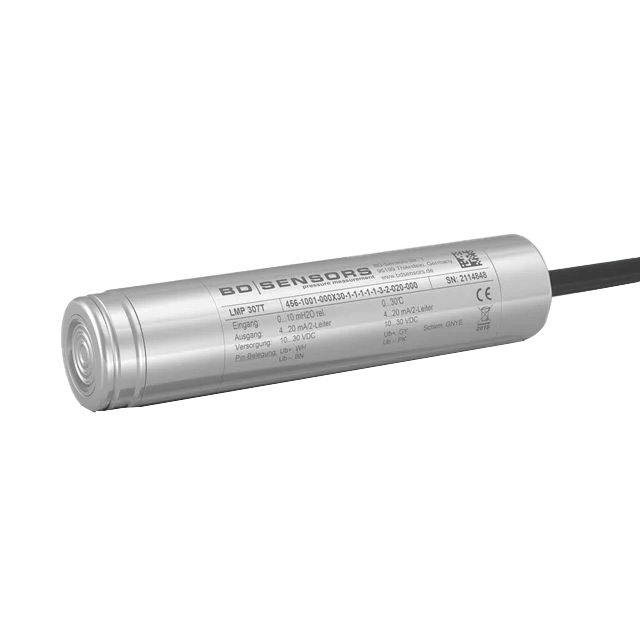

BD SENSORS LMP307T LEVEL & TEM PERATURE TRANSMITTER LMP307T LEVEL & TEMPERATURE TR 4551001000X501111131015000

Product Code: 4551001000X501111131015000

Technical Specifications

Diaphragm Material Stainless steel 1.4435 (316L)
Electrical Connection PVC-cable (grey, Ø 7.4 mm) [Shielded cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar) 1.0
Input Temperature (°C) 0 … 50
Output Signal 4 … 20 mA / 2-wire
Permissible Temperatures Medium: -10 ... 70 °C Storage: -25 ... 70 °C
Product Series LMP 307T
Response Time (ms) ≤ 10
Seals FKM
Brand BD SENSORS
Accuracy Standard for pN ≥ 0.4 bar 0.35 % FSO
Application Water / filtrated sewage: Drinking water system, Rain spillway basins, Water recycling. Fuel and oil: Tank farm.
Cable Length (m) 15
Housing Material Stainless steel 1.4404 (316L)
Version Standard
