Diaphragm Material	Ceramics Al2O3 99.9 %
Electrical Connection	FEP-cable (black, Ø 7.4 mm) [Shielded cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium / Electronic / Environment / Storage: -25 … 80 °C
Pressure (mH2O)	1.6
Product Series	LMK 809
Response Time (ms)	Mean response time: < 200 [Measuring rate: 5/sec] Max. response time: 380
Seals	EPDM
Brand	BD SENSORS
Accuracy	0.35 % FSO
Application	Sewage: Waste water treatment, water recycling, dumpsites. Aggressive Media: Level measurement in most of acids and lyes.
Cable Length (m)	5
Housing Material	PP-HT
Version	Prepared for pipe R1" [Pipe is not part of the supply]

Level Sensors

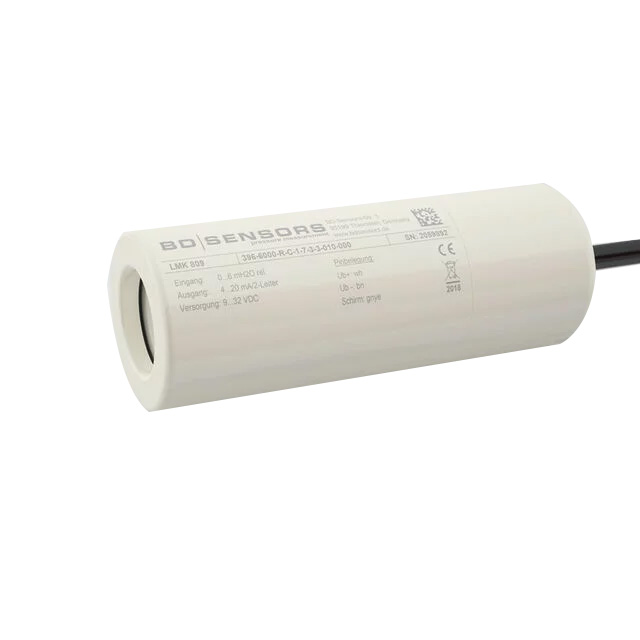

BD SENSORS LMK809 PLASTIC PROBE FOR AGGRESSIVE MEDIALMK809 PLASTIC PROBE FOR AGGRE 3961600RC1333005610
