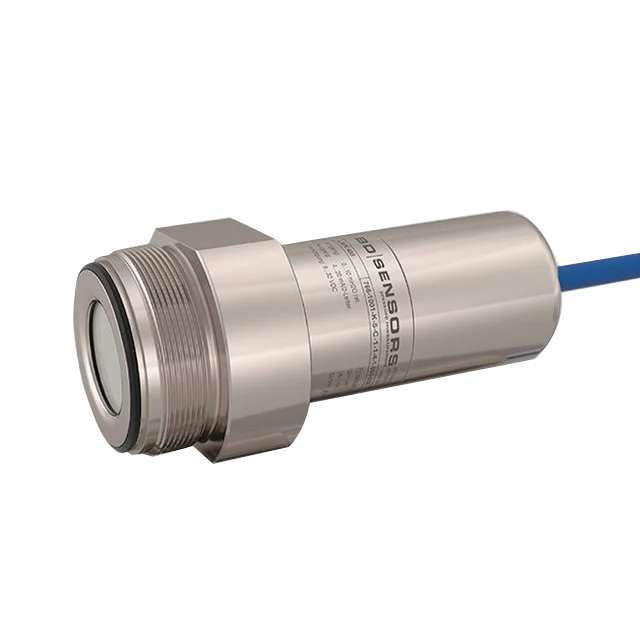

Design	Probe
Diaphragm Material	Ceramics Al2O3 96 %
Electrical Connection	TPE-U-cable (blue, Ø 7.4 mm) [Shielded cable with integrated ventilation tube for atmospheric reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326 & DNV (Det Norske Veritas).
Input Pressure (bar)	0.8…1.8
Mechanical Stability	4 g (according to DNV: class B, curve 2 / basis: DIN EN 60068-2-6)
Output Signal	Intrinsic safety 4 … 20 mA / 2-wire
Permissible Temperatures	Medium / Electronics / Environment: -25 ... 125 °C, Storage: -40 ... 125 °C
Product Series	LMK 458
Response Time (ms)	Mean response time: < 200 Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Accuracy	0.25 % FSO
Application	Drinking water abstraction. Desalinization plant. Shipbuilding / Offshore ballast tanks. Monitoring of a ship´s position and draught. Level measurement in ballast and storage tanks.
Cable Length (m)	10
Housing Material	Stainless steel 1.4404 (316L)
Version	Standard

Level Sensors

BD SENSORS LMK458 PROBE FKM BAR 4 20MA INTRINSIC TPE-U SS STEEL CERAMIC 96% 768D290112E142010000
