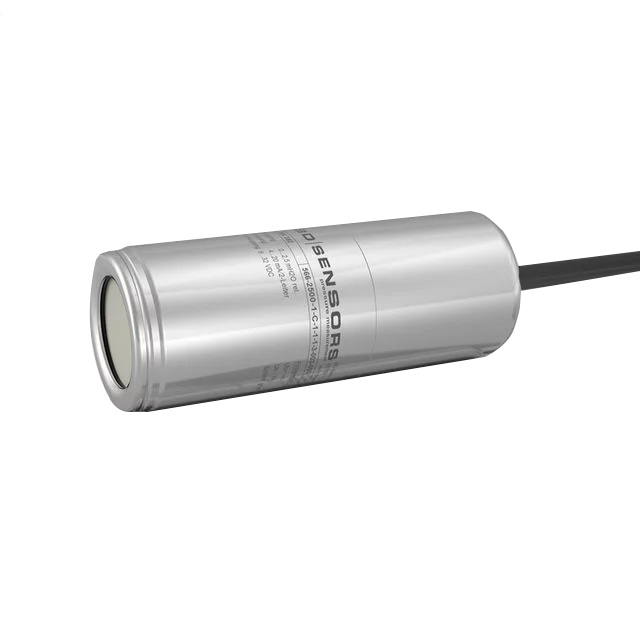

BD Sensors 5664000121113010000 Stainless Steel Probe 316L Stainless Steel Ceramic Al2O3 96% Diaphragm

Product Code: 5664000121113010000

  • 4-20 mA output for reliable signal transmission
  • Durable 316L stainless steel housing
  • Wide temp range: -40 to 125°C
  • Fast response time of 380 ms
  • CE, cULus, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Stainless Steel Probe
Brand BD SENSORS
Series LMK 382
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection PUR Cable
Housing Material 316L Stainless Steel
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Response Time 380 ms
Seal Material EPDM
Standards and Approvals CE, cULus, REACH, RoHS

Description

<p>The LMK 382 series offers a robust solution for industrial and commercial applications requiring reliable pressure measurement. Designed with durability in mind, this product features a housing made from high-quality 316L stainless steel, ensuring excellent resistance to corrosion and harsh environmental conditions. This makes it particularly suitable for demanding Australian climates and industrial settings.</p><p>One of the standout features of the LMK 382 is its output type, delivering a standard 4-20 mA signal. This ensures compatibility with various control systems and provides precise data transmission over long distances without significant signal loss. Such reliability is crucial for maintaining operational efficiency in complex automation systems.</p><p>Temperature resilience is another critical aspect of this device, supporting an operational range from -40 to 125 degrees Celsius. This broad temperature tolerance allows it to function effectively in both extreme cold and hot environments, making it versatile across different sectors such as oil &amp;amp; gas, water treatment, or manufacturing plants where temperature fluctuations are common.</p><p>The electrical connection via PUR cable adds another layer of stability and protection against mechanical stress and chemical exposure. This choice of material not only enhances longevity but also simplifies installation processes due to its flexibility.</p><p>In terms of response time, the LMK 382 boasts a swift reaction rate of just 380 milliseconds. This rapid response capability ensures timely adjustments can be made within your system&amp;#39;s operations, minimizing downtime or inefficiencies caused by delayed sensor feedback.</p><p>The diaphragm material used here is ceramic Al2O3 at a purity level of 96%, offering outstanding performance under high-pressure scenarios while resisting wear over time. Coupled with an EPDM seal material known for its excellent resistance to heat, ozone, weathering, and chemicals like acids or alkalis—this combination ensures long-term reliability even under challenging conditions.</p><p>Adhering to several key standards such as CE marking for safety compliance within Europe; cULus indicating adherence to Canadian Standards Association (CSA) guidelines; REACH which addresses the production and use of chemical substances; and RoHS which restricts hazardous substances—this product aligns well with global regulatory requirements ensuring safe usage across multiple regions including Australia.</p><p>Overall, the LMK 382 series stands out as a dependable choice when selecting equipment that demands precision engineering coupled with rugged construction tailored towards meeting industry-specific needs efficiently while adhering strictly to international safety standards without compromising on performance quality or lifespan expectations—a testament indeed worthy consideration by any discerning professional seeking value-driven solutions amidst today’s ever-evolving technological landscape!</p>
