Diaphragm Material	Ceramics Al2O3 96 %
Electrical Connection	PVC-cable (grey, Ø 7.4 mm) [Cable with integrated ventilation tube for atmospheric pressure reference]
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Lightning protection: 2 Wire (Integrated), 3 Wire (Without), Electromagnetic compatibility: emission and immunity according to EN 61326.
Permissible Temperatures	Medium/ Electronic/ Environment: -25 ... 125 °C Storage: -40 ... 125 °C
Pressure (mH2O)	2.5
Product Series	LMK 358
Response Time (ms)	Mean response time: ≤ 200 [Measuring rate: 5/sec] Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Application	Water: Ground water level measurement rain spillway basin. Sewage: Waste water treatment water recycling. Fuel and Oil: Level monitoring in open tanks with low filling heights fuel storage tank farms biogas plants.
Cable Length (m)	3
Housing Material	Stainless steel 1.4404 (316L)
Version	Standard

Level Sensors

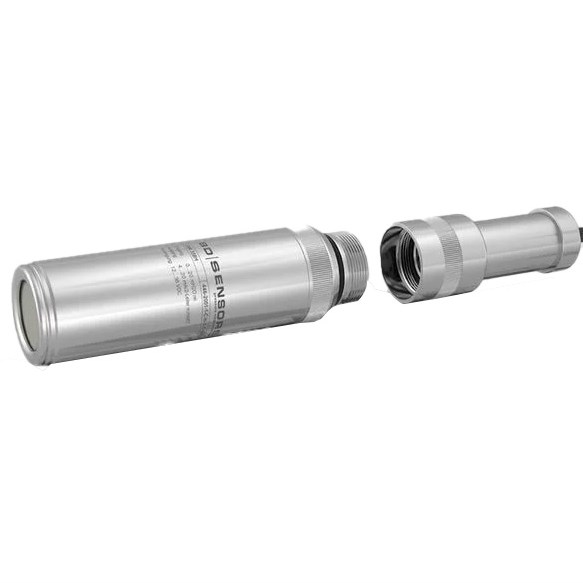

BD SENSORS LMK358H SEPARABLE S TAINLESS STEEL PROBE C/W HART LMK358H SEPARABLE STAINLESS ST 446250012H11B003000
