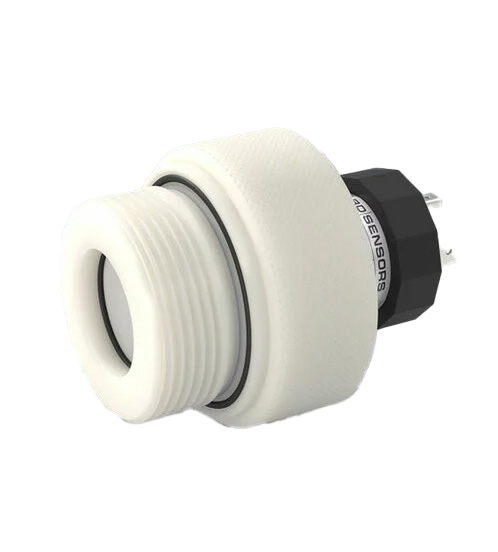

BD Sensors 4713000E3100M00112000 Screw-In Level Sensor Transmitter LMK 351 4-20mA Output For: Fuel and Oil Viscous

Product Code: 4713000E3100M00112000

  • High accuracy of 0.35% FSO
  • Wide temp range: -40 to 125°C
  • CE, cULus, REACH, RoHS compliant
  • Durable ceramic diaphragm Al2O3 96%
  • Robust design: 10g vibration, 100g shock
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Screw-In Level Sensor Transmitter
Brand BD SENSORS
Series LMK 351
Accuracy 0.35% FSO
Application Plant and machine engineering. Environmental engineering (water – sewage – recycling).
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability 10 g RMS Vibration, 100 g/1 ms Shock
Mechanical Connection G1-1/2 in DIN 3852
Operational Life 1000000 Operations
Operational Temperature -40 to 125 deg C
Rated Pressure 0 bar
Response Time 380 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The LMK 351 Ceramic Sensor is a robust and reliable choice for industrial and commercial applications, offering precision and durability. This sensor is designed to deliver consistent performance with an impressive accuracy of 0.35% Full Scale Output (FSO), making it suitable for tasks where precise measurements are critical.</p><p>Constructed to withstand harsh environments, the LMK 351 operates efficiently across a wide temperature range from -40&amp;#176;C to 125&amp;#176;C. This broad operational temperature capability ensures that the sensor remains functional in diverse conditions, whether exposed to extreme cold or heat.</p><p>In terms of compliance, this ceramic sensor meets several important standards and approvals, including CE, cULus, REACH, and RoHS. These certifications ensure that the product adheres to stringent safety and environmental guidelines, providing peace of mind regarding its quality and sustainability.</p><p>Despite being rated at 0 bar pressure for specific applications requiring no pressure measurement, its mechanical design is noteworthy. The sensor features a G1-1/2 inch DIN 3852 mechanical connection which facilitates easy integration into existing systems. Additionally, it supports both male and female plug connections compliant with ISO 4400 standards for flexible electrical interfacing options.</p><p>Durability is a standout feature of the LMK 351. It boasts mechanical stability capable of handling vibrations up to 10 g RMS as well as shocks up to 100 g over a duration of 1 ms. Such resilience makes it ideal for installations where physical stresses are common.</p><p>With an operational life rated at one million operations, this sensor promises longevity even in demanding use cases. Its response time is swift at just 380 milliseconds ensuring timely data capture without lag.</p><p>A key component contributing to its reliability is the diaphragm made from high-quality Ceramic Al2O3 with a purity level of 96%. This material choice enhances resistance against wear while maintaining sensitivity essential for accurate readings over prolonged periods.</p><p>Overall the LMK 351 Ceramic Sensor stands out as a dependable instrument engineered for professionals seeking precision coupled with endurance in challenging environments within their technical setups or projects.</p>
