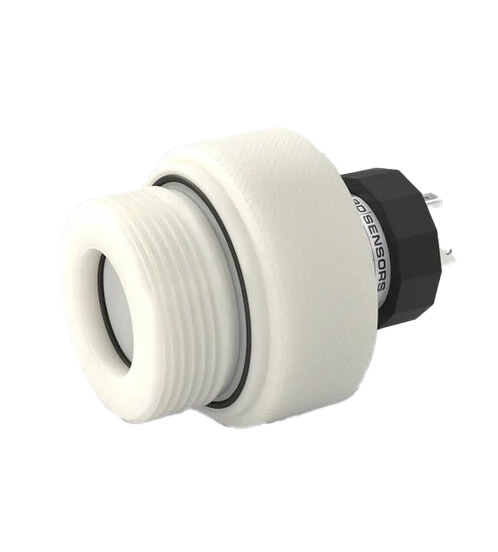

BD Sensors 471060013M10M00112000 Screw-In Level Sensor Transmitter LMK 351 4-20mA Output For: Fuel and Oil Viscous

Product Code: 471060013M10M00112000

  • High accuracy of 0.35% FSO
  • Wide temp range: -40 to 125°C
  • CE, cULus, REACH, RoHS approved
  • Durable with 1 million operations lifespan
  • Quick response time of 380 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Screw-In Level Sensor Transmitter
Brand BD SENSORS
Series LMK 351
Accuracy 0.35% FSO
Application Plant and machine engineering. Environmental engineering (water – sewage – recycling).
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection M12 x 1 Male Plug (4 Pin)
Mechanical Stability 10 g RMS Vibration, 100 g/1 ms Shock
Mechanical Connection G1-1/2 in DIN 3852
Operational Life 1000000 Operations
Operational Temperature -40 to 125 deg C
Rated Pressure 0.6 mH2O
Response Time 380 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The LMK 351 Ceramic Sensor is a robust and reliable choice for industrial and commercial applications, providing precise pressure measurement with an accuracy of 0.35% FSO. Designed to withstand demanding environments, this sensor operates efficiently across a wide temperature range from -40 to 125 degrees Celsius.</p><p>Engineered with durability in mind, the LMK 351 features mechanical stability that can endure vibrations up to 10 g RMS and shocks of up to 100 g/1 ms. This makes it suitable for installations where mechanical stress is a concern. The operational life of this sensor extends up to one million operations, ensuring long-term performance without frequent replacements.</p><p>The ceramic diaphragm material, composed of Al2O3 at a purity level of 96%, enhances the sensor&amp;#39;s resilience against corrosive environments while maintaining measurement integrity. It boasts a rated pressure capacity of 0.6 mH2O, making it ideal for water-level monitoring tasks.</p><p>Connectivity is straightforward with an M12 x 1 male plug featuring a four-pin configuration for electrical connections. This facilitates seamless integration into existing systems while adhering to industry standards such as CE, cULus, REACH, and RoHS approvals—ensuring compliance with safety and environmental regulations.</p><p>For installation flexibility, the LMK 351 employs a G1-1/2 inch DIN 3852 mechanical connection. The response time stands at an efficient 380 milliseconds, supporting timely data acquisition in dynamic conditions.</p><p>Overall, the LMK 351 Ceramic Sensor delivers reliable performance under challenging conditions with its blend of precision engineering and robust construction—a dependable solution tailored for professionals seeking consistent results in their technical applications within Australia’s diverse industrial landscape.</p>
