Diaphragm Material	Ceramics Al2O3 96 %
Electrical Connection	Male plug M12x1 (4-pin) / metal
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	0.06
Mechanical Connection	G1 1/2" DIN 3852 with flush sensor.
Mechanical Stability	Vibration: 10 g RMS (20 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Operational Life	100 million load cycles.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Pressure Port	Stainless steel 1.4404 (316L)
Product Series	LMK 351
Response Time (ms)	Mean response time: ≤ 200 Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Accuracy	For pN ≥ 0.6 bar: 0.25 % FSO
Application	Plant and machine engineering. Environmental engineering (water – sewage – recycling).
Suitable For	Fuel and oil. Viscous and pasty media.
Version	Standard

Level Sensors

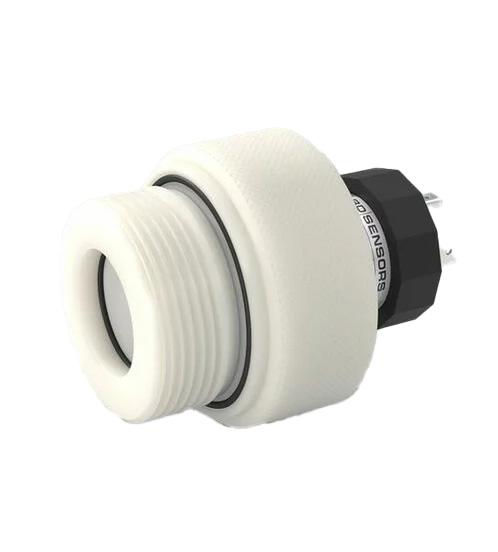

BD SENSORS LMK 351 SCREW-IN TR ANSMITTER LMK351 SCREW-IN TRANSMITTER 470060012M10M00112000
