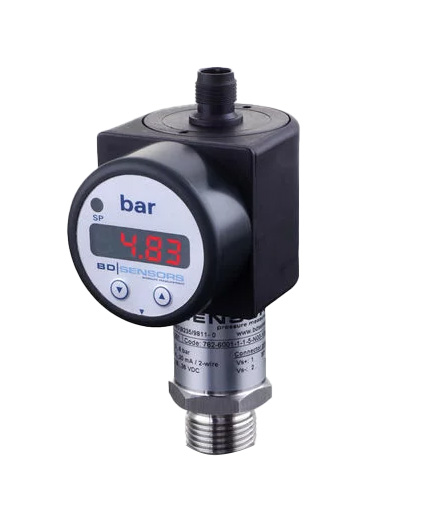

BD Sensors 7826001015N01100112000 Electronic Pressure Switch

Product Code: 7826001015N01100112000

  • 4-20 mA output for precise control
  • High accuracy at 0.5% FSO
  • Robust IP65 protection rating
  • Operates in -40 to 125°C range
  • Complies with IEC 60770 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Electronic Pressure Switch
Brand BD SENSORS
Series DS 201
Accuracy 0.5% FSO
Degree of Protection IP65
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure -1 to 0 bar
Shock Resistance 500 g/1 ms
Standards and Approvals IEC 60770
Vibration Resistance 25-2000 Hz

Description

<p>The DS 201 series is a reliable choice for professionals in the industrial and commercial sectors who demand precision and durability. This product offers an output type of 4-20 mA, which is a standard in many industrial applications for transmitting analog signals over long distances with minimal signal loss. With an accuracy of 0.5% Full Scale Output (FSO), it ensures precise measurements essential for maintaining operational efficiency.</p><p>Designed to withstand harsh environments, the DS 201 boasts an IP65 degree of protection. This means it is dust-tight and can handle low-pressure water jets from any direction, making it suitable for challenging conditions where exposure to dust or water could be a concern.</p><p>One notable feature of this product is its wide operational temperature range from -40 to 125 degrees Celsius. Such flexibility allows it to perform reliably across various climates and industrial settings without compromising performance.</p><p>The DS 201 complies with IEC 60770 standards, ensuring that it meets international criteria for transmitters used in process control systems. This compliance underscores the product&amp;#39;s quality and reliability, giving users confidence in its performance.</p><p>In terms of resilience, the DS 201 can endure shock resistance up to 500 g/1 ms and vibration resistance ranging from 25-2000 Hz. These attributes make it ideal for installations where mechanical stressors are prevalent, such as heavy machinery operations or areas prone to frequent vibrations.</p><p>Additionally, this series supports rated pressure measurements between -1 to 0 bar. Its capability to operate effectively at such pressures makes it versatile for applications involving vacuum conditions or negative pressure scenarios often encountered in specific industrial processes.</p><p>Overall, the DS 201 series stands out as a robust solution tailored for demanding technical environments requiring dependable measurement tools that deliver accurate results consistently over time while adhering to international standards.</p>
