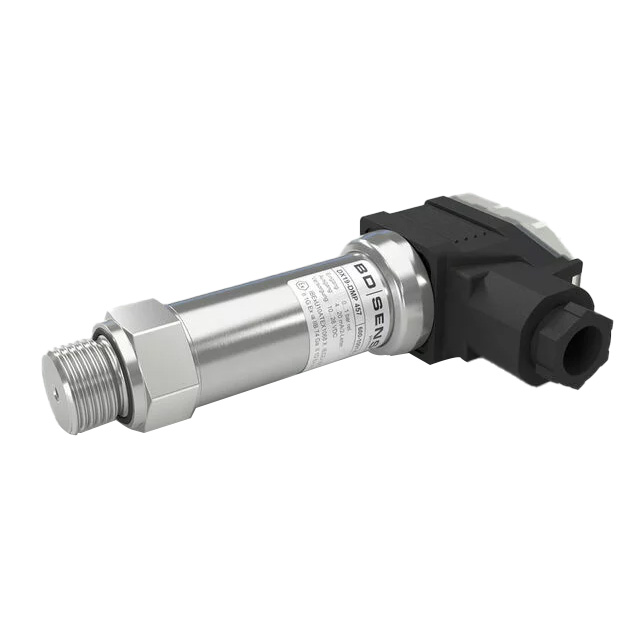

BD Sensors 600V502E3G101001000 Pressure Transmitter

Product Code: 600V502E3G101001000

  • Stainless steel construction for durability
  • 4-20 mA output ensures reliable signal
  • High accuracy of 0.35% FSO
  • Wide temp range: -40 to 125°C
  • Quick response time: <=10 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMP 457
Accuracy >=0.4 bar, 0.35% FSO
Application Diesel Engines, Drives, Compressors, Pumps, Boiler, Hydraulic and Pneumatic Control Systems.
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability 4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Mechanical Connection G1/2 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Response Time <=10 ms
Seal Material FKM
Version Standard

Description

<p>The DMP 457 Stainless Steel Sensor is a reliable choice for industrial and commercial applications, designed to meet the demands of Australian technical professionals. This sensor offers robust performance with its stainless steel construction, ensuring durability in harsh environments.</p><p>Operating within a temperature range of -40 to 125 degrees Celsius, the DMP 457 is suitable for various demanding conditions. Its accuracy stands at an impressive &amp;gt;=0.4 bar with a Full Scale Output (FSO) of 0.35%, making it ideal for precise measurements and critical applications where reliability is non-negotiable.</p><p>The sensor&amp;#39;s output type is a standard 4-20 mA signal, widely used in industrial automation for transmitting data over long distances without significant loss. This ensures compatibility with most control systems and simplifies integration into existing setups.</p><p>With a mechanical life rated at 10 million operations, the DMP 457 promises longevity and consistent performance over extended periods, reducing maintenance needs and operational downtimes. The mechanical connection features a G1/2 inch DIN 3852 fitting, providing secure and straightforward installation.</p><p>For electrical connectivity, the sensor includes both male and female plug options conforming to ISO 4400 standards. This flexibility allows easy incorporation into diverse systems while maintaining reliable connections under varying conditions.</p><p>A response time of &amp;lt;=10 milliseconds ensures that this sensor can quickly react to changes in pressure levels, facilitating real-time monitoring and control essential in dynamic processes.</p><p>The seal material used is FKM (fluoroelastomer), known for its excellent resistance to heat, chemicals, and environmental factors. This choice enhances the sensor&amp;#39;s ability to function effectively across different industries such as chemical processing or oil &amp;amp; gas where exposure to aggressive substances might otherwise compromise lesser materials.</p><p>Overall, the DMP 457 Stainless Steel Sensor combines precision engineering with rugged construction to deliver dependable performance across numerous applications. Whether you&amp;#39;re upgrading your current system or designing new installations from scratch, this sensor provides a versatile solution tailored to meet stringent technical requirements while offering peace of mind through proven reliability over millions of cycles.</p>
