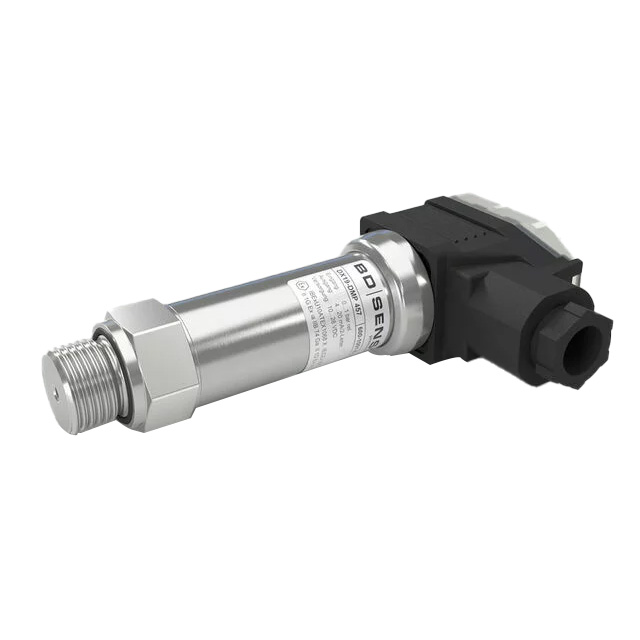

BD Sensors 6004003ES3880N005000 Pressure Transmitter

Product Code: 6004003ES3880N005000

  • Stainless steel sensor for durability
  • 4-20 mA output for reliable data transmission
  • High accuracy at 0.35% FSO
  • Operates in -40 to 125°C temperature range
  • Rated pressure up to 400 bar
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMP 457
Accuracy 0.35% FSO
Application Diesel Engines, Drives, Compressors, Pumps, Boiler, Hydraulic and Pneumatic Control Systems.
Electrical Connection Field Housing 316L Stainless Steel
Mechanical Stability 4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Mechanical Connection 1/2 in NPT
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 400 bar
Response Time <=10 ms
Version Standard

Description

<p>The DMP 457 series stainless steel sensor is a robust and reliable choice for industrial and commercial applications, offering precise pressure measurement with an accuracy of 0.35% Full Scale Output (FSO). This sensor is engineered to perform in demanding environments, thanks to its durable construction and advanced features.</p><p>Designed for versatility, the DMP 457 operates efficiently across a wide temperature range from -40 to 125 degrees Celsius. This makes it suitable for various settings where extreme temperatures are a factor. The sensor&amp;#39;s rated pressure capacity of 400 bar ensures it can handle high-pressure scenarios effectively, making it ideal for industries such as oil and gas, manufacturing, and chemical processing.</p><p>The output type of the DMP 457 is standardized at 4-20 mA, which is widely used in industrial applications for transmitting analog signals over long distances without significant loss of signal integrity. This compatibility simplifies integration with existing systems and enhances data reliability.</p><p>Built to last, the mechanical life expectancy of this sensor reaches up to ten million operations. Such longevity reduces maintenance needs and downtime, providing cost savings over time. The mechanical connection uses a standard 1/2 inch NPT fitting, ensuring ease of installation with other industry-standard equipment.</p><p>Housed in field-ready 316L stainless steel, the electrical connection offers excellent resistance to corrosion and environmental factors. This robust housing ensures that the sensor remains operational even in harsh conditions or when exposed to corrosive substances.</p><p>With a response time of less than or equal to 10 milliseconds, the DMP 457 provides rapid feedback necessary for real-time monitoring and control processes. Its quick response capability supports dynamic applications where timely data acquisition is critical.</p><p>In summary, the DMP 457 series stainless steel sensor combines precision engineering with rugged durability. Its comprehensive feature set addresses key operational requirements while delivering reliable performance across diverse industrial sectors. Whether you&amp;#39;re upgrading existing systems or implementing new solutions, this sensor stands out as a dependable component designed to meet your technical specifications efficiently within its lifecycle parameters.</p>
