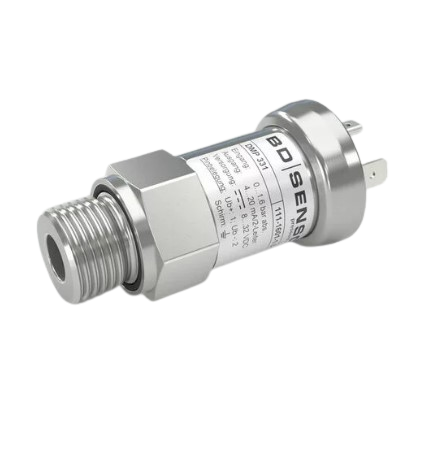

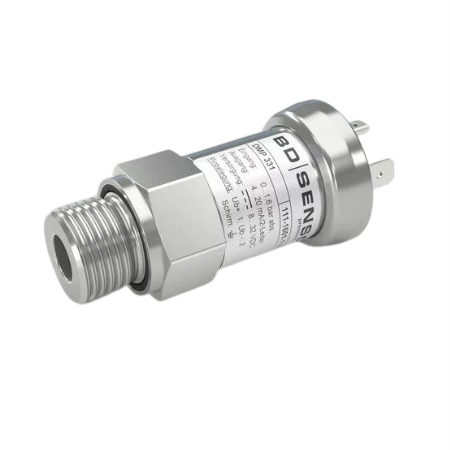

BD SENSORS PRESSURE TRANSMITTER 10 BAR STAINLESS STEEL IP65 1101002121001001000

Product Code: 1101002121001001000

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Stainless Steel Sensor
Brand BD SENSORS
Series DMP 331
Accuracy 0.25% FSO (Option 1 for pN ≥ 0.4 bar)
Connection Type M/F Plug ISO 4400 (Electrical), G1/2" DIN 3852 (Mechanical)
Degree of Protection IP65
Material Stainless Steel

Description

<p>Pressure transmitter for low pressure, gauge pressure 10 bar. Output 4 … 20 mA / 2-wire &amp;amp; accuracy 0.25 % FSO (option 1 for pN = 0.4 bar). Male and female plug ISO 4400 connection (electrical), G1/2&amp;quot; DIN 3852 connection (mechanical). Stainless Steel, IP65</p>
