Electrical Connection	Compact field housing stainless steel 1.4301 (304)
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	0.60
Mechanical Connection	G1/2" DIN 3852 with flush sensor (Only for pN ≤ 40 bar)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Operational Life	100 million load cycles.
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Product Series	DMP 331
Response Time (ms)	≤ 10
Seals	FKM
Brand	BD SENSORS
Accuracy	Standard for pN< 0.4 bar: 0.50 % FSO
Application	Plant and machine engineering. Environmental engineering (water - sewage - recycling). Energy industry.
Version	Standard

Pressure Sensors

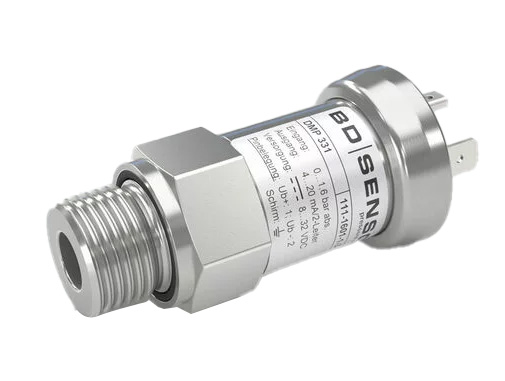

BD SENSORS DMP331 INDUSTRIAL PRESSURE TRANSMITTERDMP331 INDUSTRIAL PRESSURE TRA 110600015850F001000
