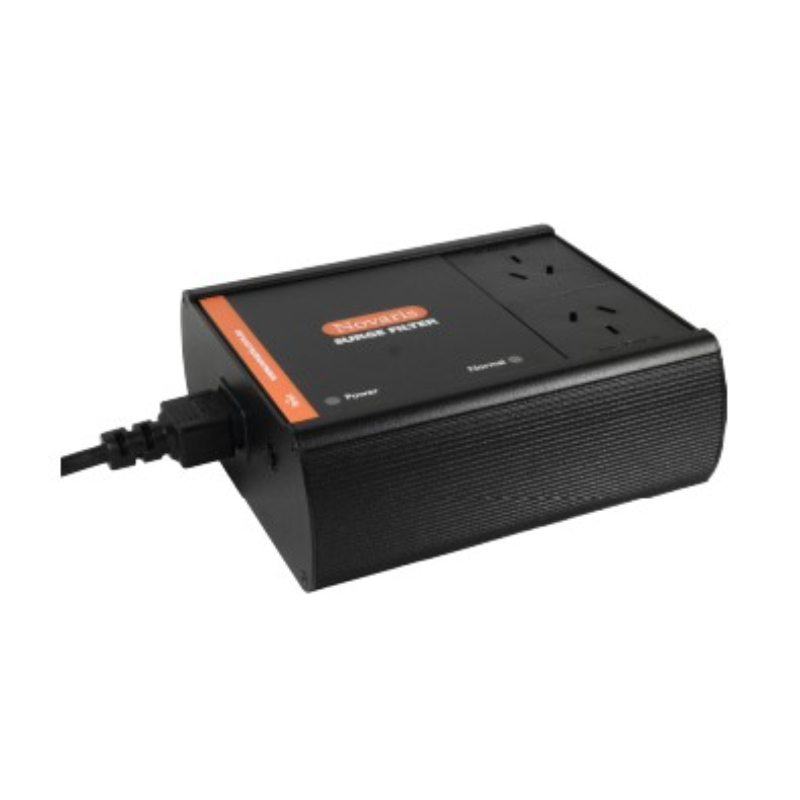

NOVARIS SURGE FILTER, 230VAC, 50KA MAX DISCHARGE PP10A2-50

Product Code: PP10A2-50

: The Novaris PP10A2-50 is a high-performance plug-in surge filter designed to protect sensitive electronic devices such as home theatres, hi-fi systems, computer servers, PCs, and communications equipment from power surges. Encased in a safe metal enclosure with all-mode protection and compliance with multiple standards.

Technical Specifications

Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 60H x 137L
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N, N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 50
Mounting Type Free standing
No. of Outlets 2
No. of Phases 1
Nominal Discharge Current (8/20µs) - In (kA) 20
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Rated Load Current - I? (A) 10
Series PP10
Standards and Approvals IEC 61643-11, AS/NZS 1768, IEEE C62.41, IEC 1000-4-5
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.6 (L-N)
Voltage Protection Level - Up (kV) <0.8 (L-N)
Weight (kg) 1.3
