W66 Industrial IP66 Switchgear

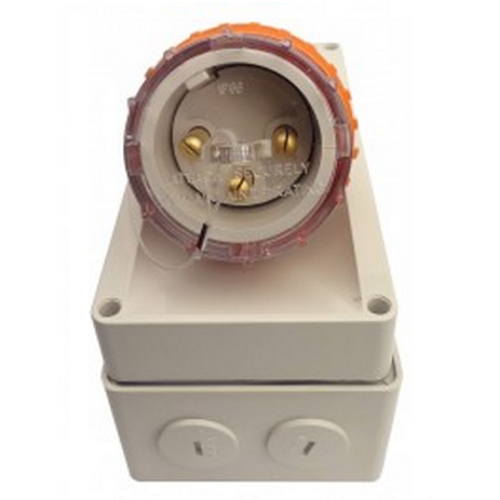

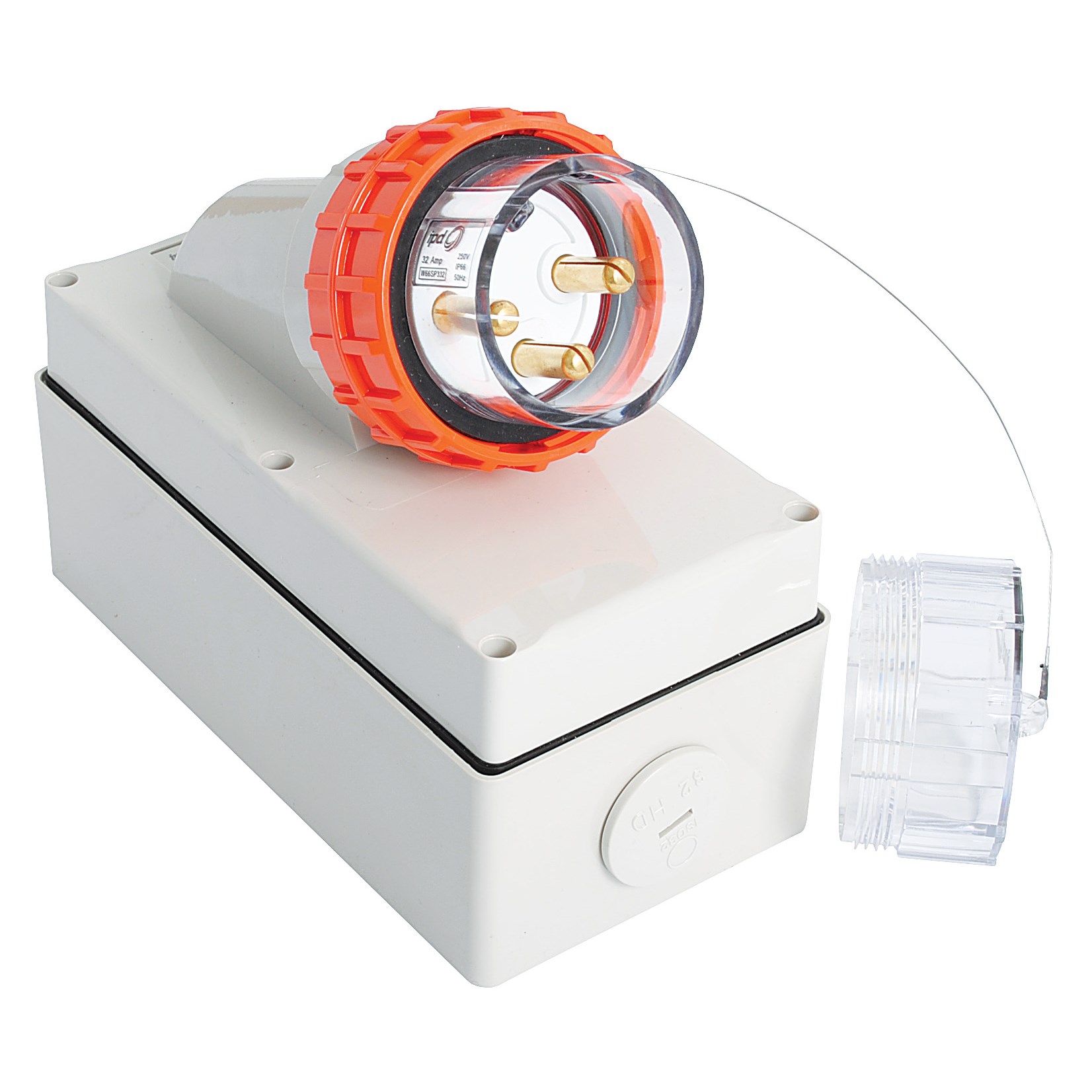

IPD APPLIANCE INLET SINGLE PHASE 3 ROUND PINS 32A 250V, IP66 W66AI332

Product Code: W66AI332

Single phase appliance inlet with 3 round pins and 63mm base, IP66. Current rating at 32A, voltage rating at 250V. Max cable area 16mm² and stainless steel fixings, silicone cover gasket. Includes B2 back box.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 197H x 188D
Gland Entries 2 x M25 + 1 x M32
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 1
No. of Pins 3
Pin Type Round
Rated Current (A) 32
Rated Voltage AC/DC (V) 250
