W66 Industrial IP66 Switchgear

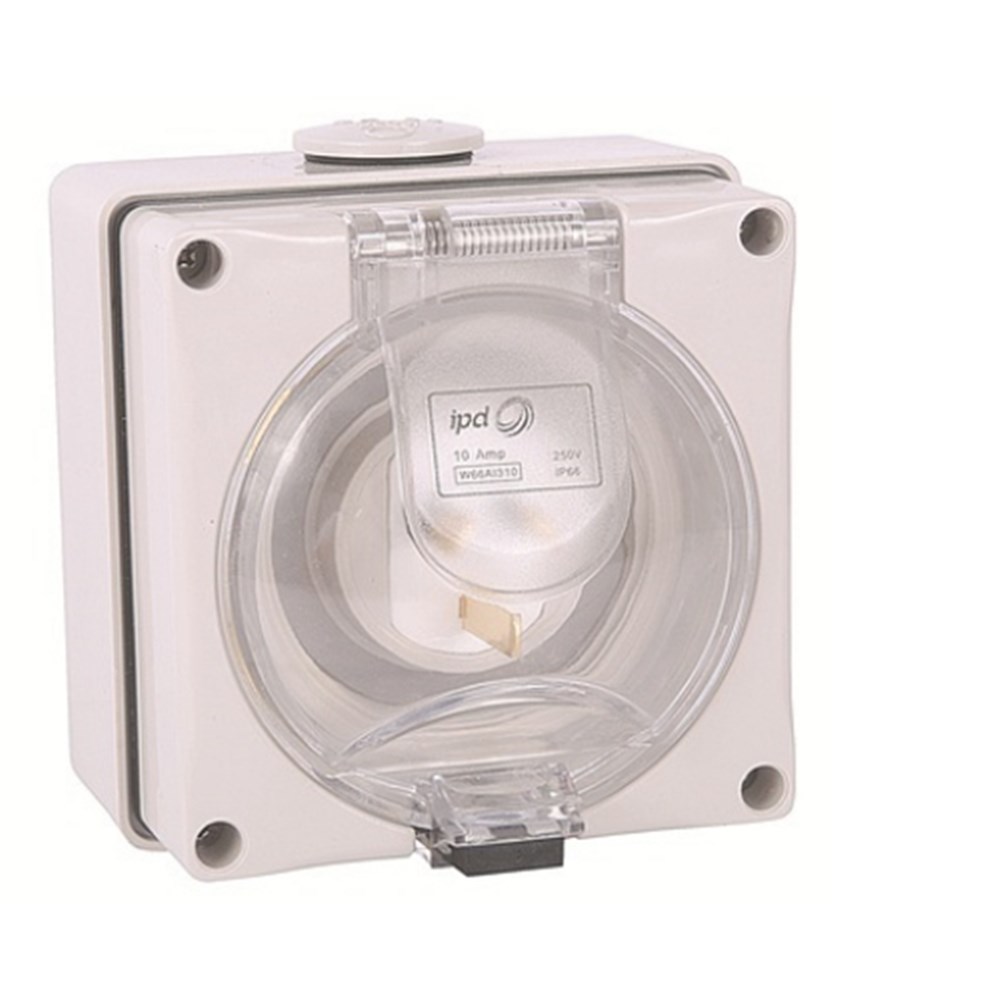

IPD APPLIANCE INLET SINGLE PHASE 3 FLAT PINS 10A 250V, IP66 W66AI310

Product Code: W66AI310

Single phase appliance inlet with 3 flat pins and 38mm base, IP66. Current rating at 10A, voltage rating at 250V. Max cable area 6mm² and stainless steel fixings, silicone cover gasket. Includes low profile base.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Silicone Gasket
Degree of Protection IP66
Dimensions (mm) 101W x 101H x 80D
Gland Entries 2 x M20 + 1 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 1
No. of Pins 3
Pin Type Flat
Rated Current (A) 10
Rated Voltage AC/DC (V) 250
Suitable For W66AI310
