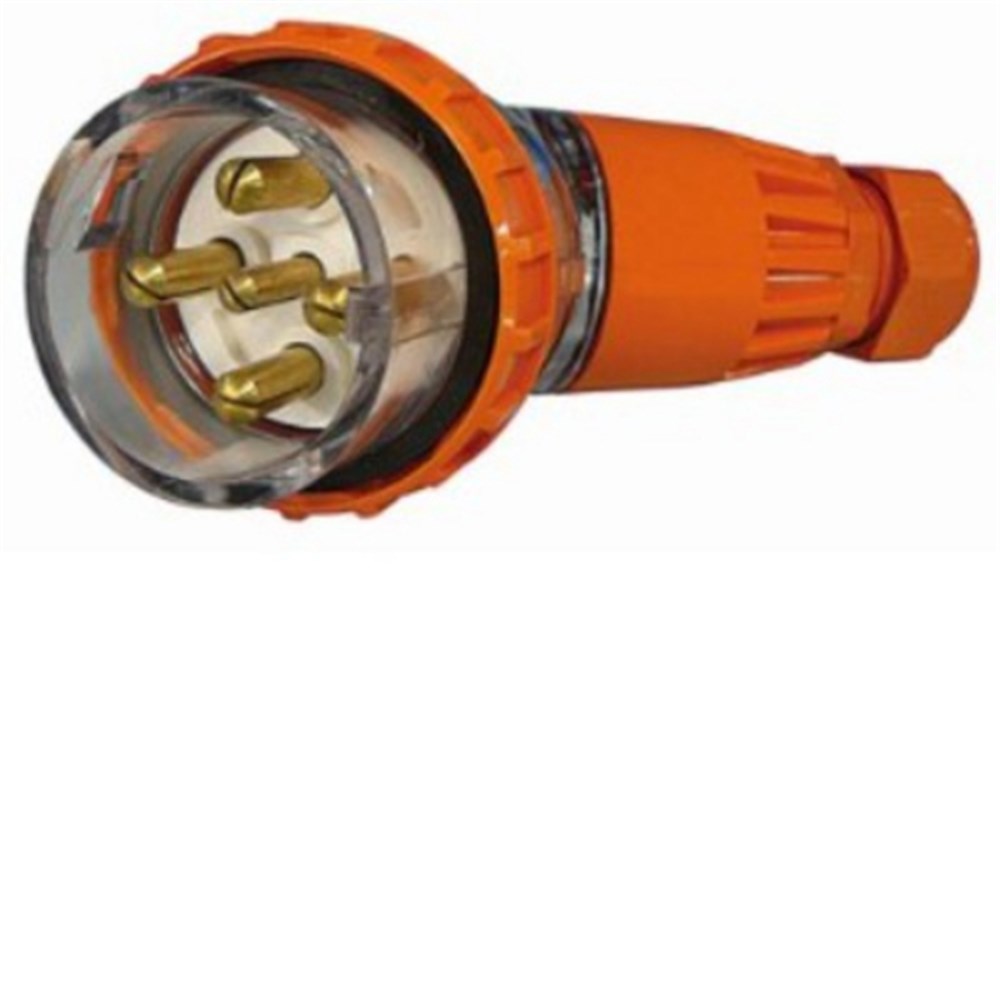

IPD W66AP532 Angled Plug 5 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66AP532

  • 32 A rated current for robust performance
  • Operates at 500 VAC/VDC
  • IP66 protection against dust and water
  • Durable polycarbonate construction
  • Compression gland with 37 mm entries
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Angled Plug
Brand IPD
Cable Cross Section 16 sq-mm
Cover Style Clear/Orange
Degree of Protection IP66
Gland Entries 37 mm
Gland Style Compression
Material Polycarbonate
Number of Pins 5
Phase 3
Pin Type Round
Rated Current 32 A
Rated Voltage 500 VAC/VDC
Standards and Approvals AS3123

Description

<p>When selecting a plug for industrial or commercial applications, understanding the technical specifications is crucial. This plug is designed to meet demanding environments while maintaining reliability and safety standards.</p><p>Rated for a current of 32 A, this plug supports both AC and DC voltages up to 500 V, making it versatile across different power systems. Its compliance with AS3123 standards ensures it meets Australian safety and performance requirements, providing peace of mind in its application.</p><p>The robust construction features polycarbonate material known for its durability and resistance to impact and environmental factors. This makes it suitable for harsh conditions where mechanical stress might be a concern. The IP66 rating further enhances its suitability by offering high protection against dust ingress and powerful water jets from any direction, ensuring continued performance even in challenging settings.</p><p>A significant feature of this plug is the cable cross-section capacity of 16 sq-mm, accommodating substantial electrical loads without compromising on efficiency or safety. The gland entry measures 37 mm and utilizes a compression style which provides secure sealing around cables, reducing strain on connections while maintaining waterproof integrity.</p><p>With round pin types included in the design, this plug offers reliable connectivity that minimizes wear over time compared to other shapes that may suffer from uneven pressure distribution during use.</p><p>In summary, this plug combines robust materials with thoughtful engineering to deliver a product capable of handling demanding industrial tasks safely and efficiently. It&amp;#39;s an ideal choice for those seeking reliability under tough conditions without sacrificing compliance with local standards.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
