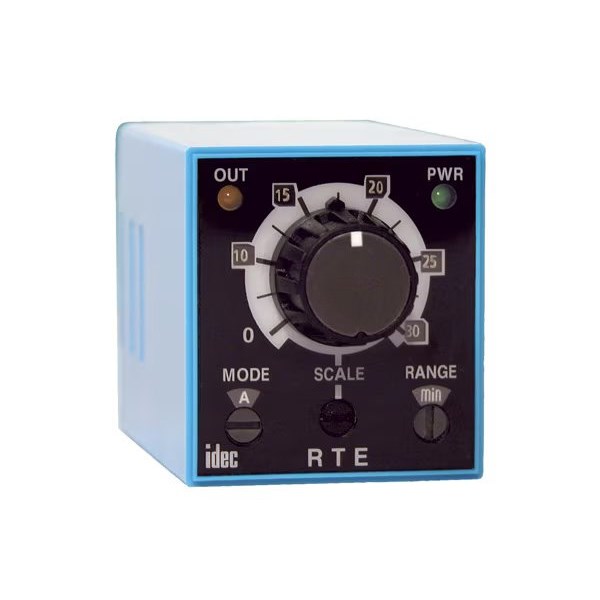

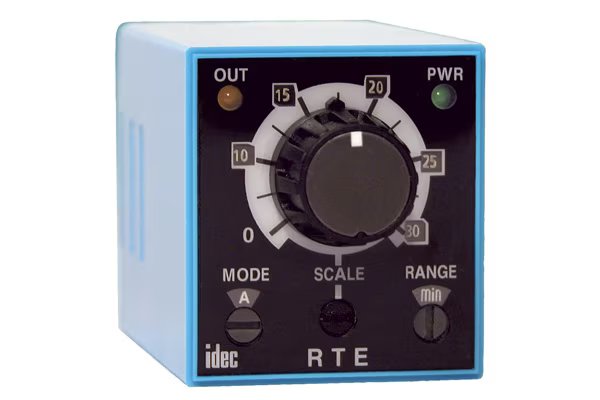

IDEC RTE-B2AD24 Analog Timer 24VDC

Product Code: RTE-B2AD24

  • Compact size: 36mm width, 40mm height, 74.9mm depth
  • High electrical life: 500,000 operations
  • Robust mechanical life: 50 million operations
  • Operates in -20 to 65°C temperature range
  • CE and UL Listed for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Analog Timer
Brand IDEC
Degree of Pollution IP2
Degree of Protection IP40
Depth 74.9 mm
Electrical Life 500000 Operations
Height 40 mm
Humidity 35-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Operational Temperature -20 to 65 deg C
Overvoltage Category Category III
Rated Power 1.7 W
Rated Voltage 24 VDC
Shock Resistance 98 ms
Standards and Approvals CE, cULus, UL Listed File E66043
Timer Function 0.1s - 600hrs
Vibration Resistance 10-50 Hz
Weight 85 g
Width 36 mm

Description

<p>When selecting a plug-in timer for industrial or commercial use, reliability and efficiency are paramount. This plug-in timer is designed to meet the rigorous demands of such environments with its robust specifications and extended operational lifespan.</p><p>Operating at a rated voltage of 24 VDC, this timer ensures consistent performance while consuming only 1.7 W of power. Its compact dimensions—36 mm in width, 40 mm in height, and 74.9 mm in depth—make it an ideal choice for installations where space is at a premium without compromising on functionality.</p><p>Durability is a standout feature of this product, boasting an impressive electrical life of up to 500,000 operations. Additionally, with a mechanical life reaching up to an extraordinary 50 million operations, you can trust this timer to deliver dependable service over the long haul. The insulation resistance stands at 100 MOhm, providing added safety by preventing unwanted current flow.</p><p>The unit&amp;#39;s resilience extends beyond longevity; it&amp;#39;s built to withstand challenging conditions with shock resistance rated at 98 ms and vibration resistance between frequencies of 10-50 Hz. It operates efficiently within humidity levels ranging from 35% to 85%, ensuring reliability in diverse climatic conditions.</p><p>Rated IP40 for degree of protection and IP2 for pollution degree, the device offers adequate safeguarding against solid objects larger than 1mm but should be used in environments free from excessive dust or moisture exposure. It functions optimally across a wide temperature range from -20&amp;#176;C to +65&amp;#176;C, making it suitable for various applications across different settings.</p><p>Safety and compliance are assured as this timer meets CE standards along with cULus certifications and UL Listed File E66043 approval—reassuring users that it adheres to international quality benchmarks.</p><p>Weighing just 85 grams, its lightweight nature adds convenience during installation or relocation within systems that require flexibility or frequent adjustments.</p><p>In summary, this plug-in timer combines durability with efficient performance tailored for industrial needs while adhering strictly to global safety standards—a trustworthy addition to any technical setup requiring precise time management solutions.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
