Product Code: KSE440TPSN

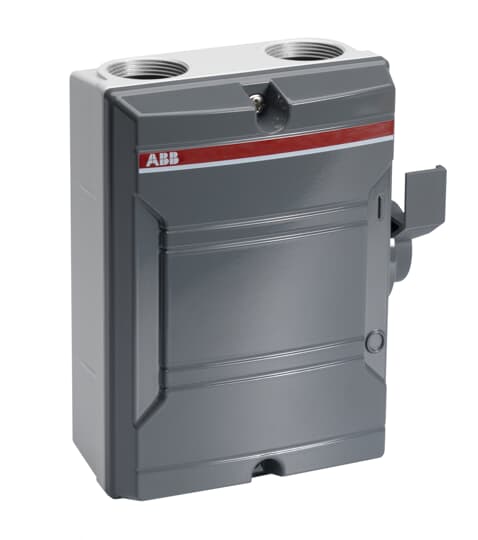

Enclosed Switch Disconnector, 4-p. 415V AC23 25A, 11kW. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a switchable neutral terminal and PE terminal. The terminals are easily accessible for easy installation

Brand	ABB
Colour	Grey (Handle)
Conventional Free-Air Thermal Current - Ith (A)	40
Degree of Protection	IP65
Material	Aluminium
No. of Poles	4
Rated Current (A)	40
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	691 (acc. to IEC/EN 60664-1)
Rated Operational Current AC-22A 380-415V (A)	40
Rated Operational Current AC-23A 380-415V (A)	25
Rated Operational Voltage (V)	691 (Main Circuit)
Standards	IEC 60947-1, -3
Tightening Torque (Nm)	1.2 (Main Circuit)
Weight (kg)	0.8 (Net)

Switch Disconnectors

ABB EMC ENCL SWITCH DISCON 4P 40A AL IP65 GREY SIDE OPERATION KSE440TPSN
