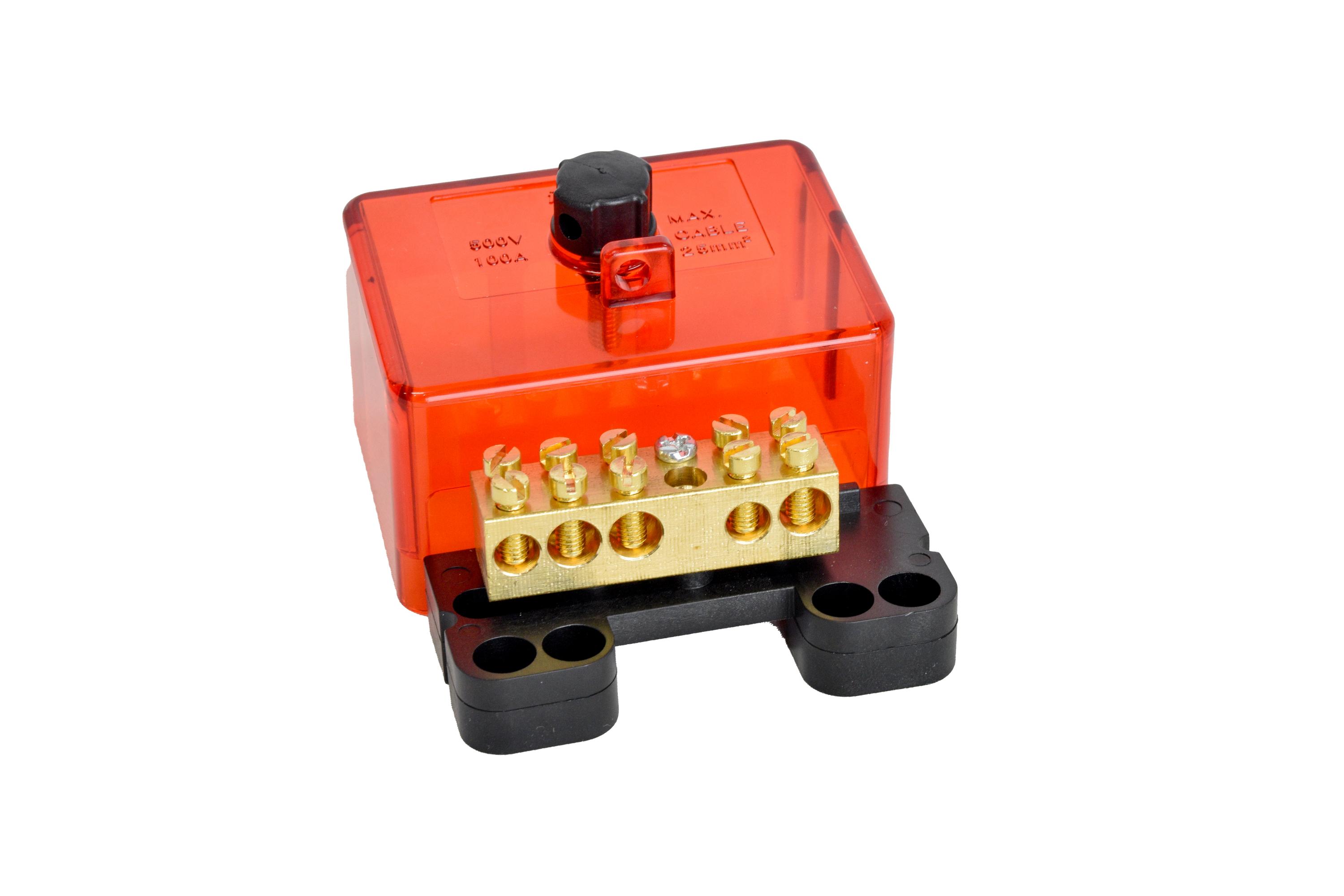

IPD A100/5R ACTIVE LINK 100A 5 HOLES, MAX CABLE SIZES 2*16mm² & 3*25mm²

Product Code: A100/5R

The Active Link 100A 5-hole connector is designed for panel mounting and can be sealed. It has a red cover and its dimensions are 49mm (D) x 50mm (W) x 69mm (L). The recommended maximum cable sizes for this connector are 2*16mm² and 3*25mm².

Technical Specifications

Brand IPD
Cover Colour Red
Dimensions (mm) 49D x 50W x 69L
Mounting Type Panel Mount
No. of Holes 5
Pack Quantity 1
Rated Current (A) 100
Sealable Yes
