Air Circuit Breakers

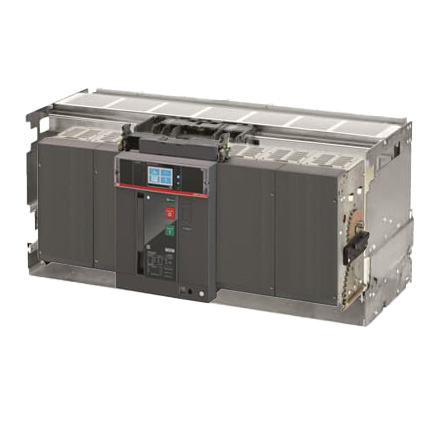

ABB ACB E6.2H 6300 4P 100KA WITHDRAWABLE EKIP TOUCH LSIG WITH FIXED PART KIT E62H4ETG63W/F

Product Code: E62H4ETG63W/F

The ACB E6.2H 6300 4P is a withdrawable circuit breaker with a rated current of 6300A and a short-circuit breaking capacity of 100 kA. It features the Ekip touch LSIG trip unit and comes with fixed part rear horizontal terminals. This kit includes all the necessary components for installation. The circuit breaker has four poles and is designed to handle different current ranges: L-I1 = 2520-6300A, S-I2 =3780-63000A, I-I3 =9450-94500A, G-I4 =630-6300A.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Current Rating (A) 6300
Frame E6.2
G (0.1 to 1 x In) - I4 (A) 630-6300
I (1.5 to 15 x In) - I3 (A) 9450-94500
Icw (kA/1s) - Short-time Withstand Current Rating 100
L (0.4 to 1 x In) - I1 (A) 2520-6300
No. of Poles 4P
Poles 4P
Rated Current (A) 6300
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 100
S (0.6 to 10 x In) - I2 (A) 3780-63000
Size of Frame E6.2
Standards and Approvals IEC
Terminal Type Rear (HR - HR)
Trip Unit EKIP Touch LSIG
Trip Unit - Electronic EKIP Touch LSIG
