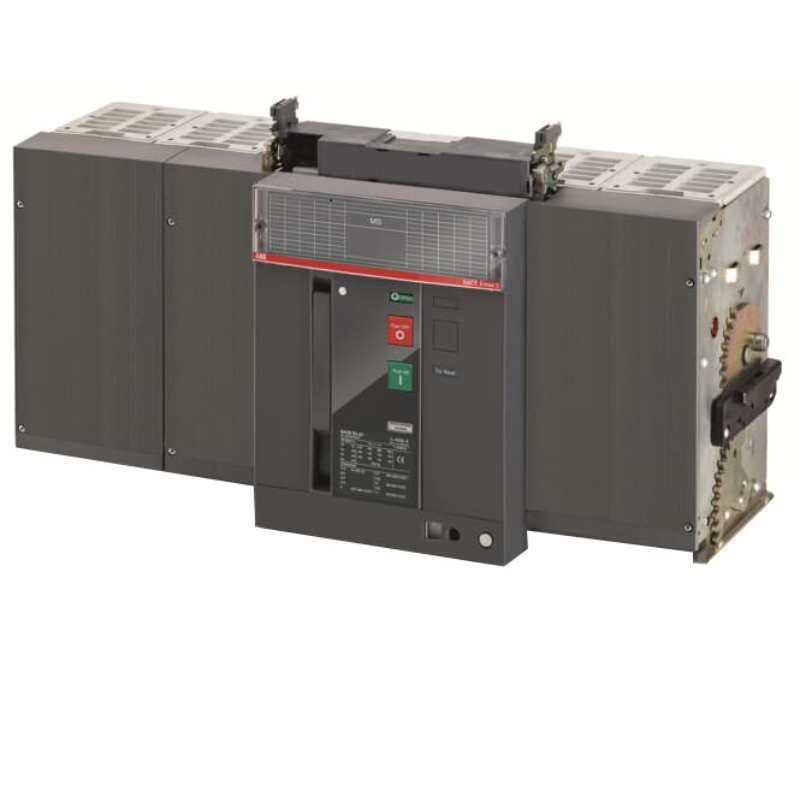

ABB E62H3NA63W ACB E6.2H 3P 100KA WITHDRAWABLE 6300A NON AUTO

Product Code: E62H3NA63W

The ACB E6.2H is a 6300A, 3P circuit breaker with a 100kA short-circuit breaking capacity. It features a withdrawable design and does not have automatic operation. The terminal is HR-HR and it comes complete with WMP+FP components.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 6300
Frame E6.2
Icw (kA/1s) - Short-time Withstand Current Rating 100
Iu - Uninterrupted Current Rating (A) 6300
No. of Poles 3P
Poles 3P
Power Loss (W) 1550
Rated Current (A) 6300
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 100
Rated Uninterrupted Current - Iu (A) 6300
Size of Frame E6.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
