Product Code: E62H4ETG50W/F

The ACB E6.2H 5000 4P is a withdrawable circuit breaker with a rated current of 5000A and a short-circuit breaking capacity of 100 kA. It features four poles and is equipped with the Ekip touch LSIG trip unit. The trip unit has fixed part rear horizontal terminals. This product is available as a KIT. The current ratings for different settings are as follows: L-I1 ranges from 2000-5000A, S-I2 ranges from 3000-50000A, I-I3 ranges from 7500-75000A, and G-I4 ranges from 500-5000A.

Brand	ABB
AC Voltage (V)	690
Current Rating (A)	5000
Frame	E6.2
G (0.1 to 1 x In) - I4 (A)	500-5000
I (1.5 to 15 x In) - I3 (A)	7500-75000
Icw (kA/1s) - Short-time Withstand Current Rating	100
L (0.4 to 1 x In) - I1 (A)	2000-5000
No. of Poles	4P
Poles	4P
Rated Current (A)	5000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	100
S (0.6 to 10 x In) - I2 (A)	3000-50000
Size of Frame	E6.2
Standards and Approvals	IEC
Terminal Type	Rear (HR - HR)
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG

Air Circuit Breakers

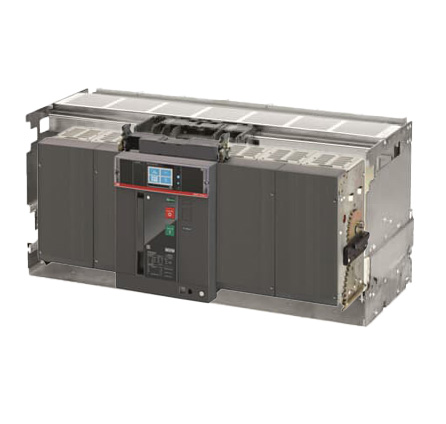

ABB ACB E6.2H 5000 4P 100KA WITHDRAWABLE EKIP TOUCH LSIG WITH FIXED PART KIT E62H4ETG50W/F

Product Code: E62H4ETG50W/F
