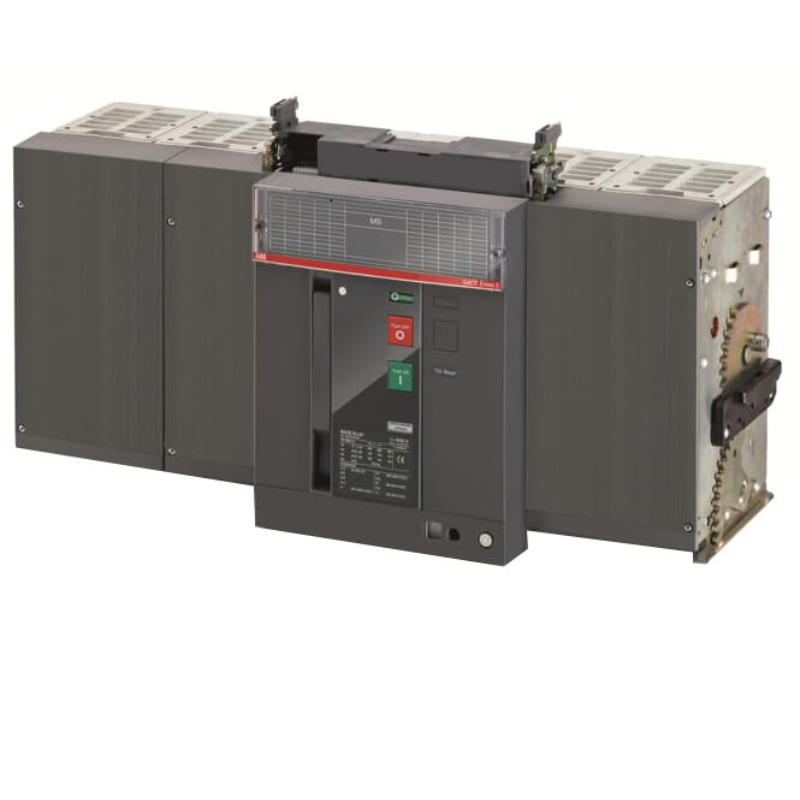

ABB E62H3NA50W ACB E6.2H 3P 100KA WITHDRAWABLE 5000A NON AUTO

Product Code: E62H3NA50W

The ACB E6.2H is a 5000A, 3P circuit breaker with a 100kA short-circuit breaking capacity. It features a withdrawable non-auto HR-HR terminal and comes complete with WMP+FP accessories.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 5000
Frame E6.2
Icw (kA/1s) - Short-time Withstand Current Rating 100
Iu - Uninterrupted Current Rating (A) 5000
No. of Poles 3P
Poles 3P
Power Loss (W) 850
Rated Current (A) 5000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 100
Rated Uninterrupted Current - Iu (A) 5000
Size of Frame E6.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
