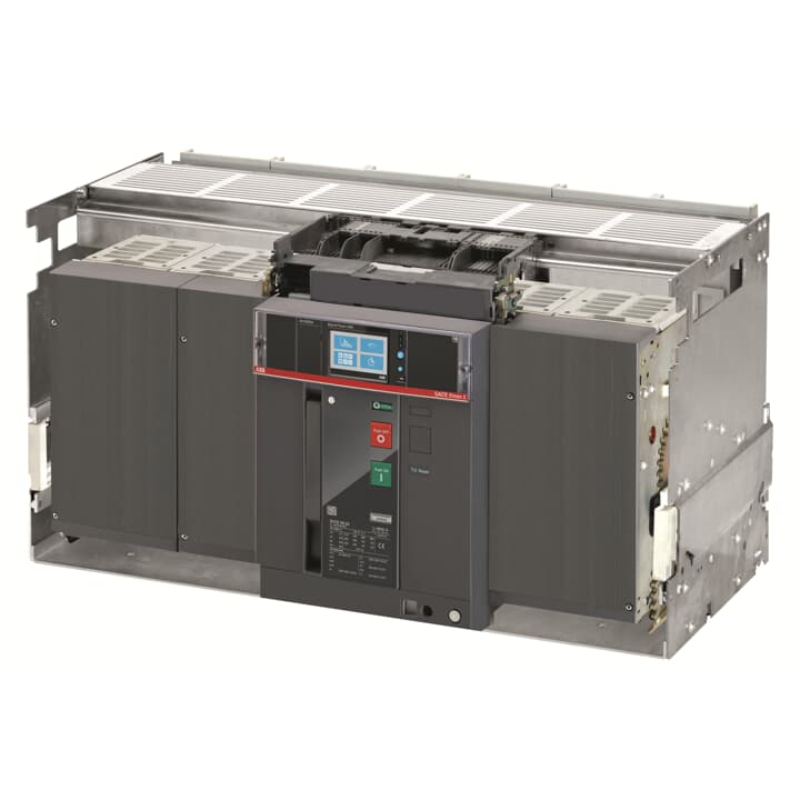

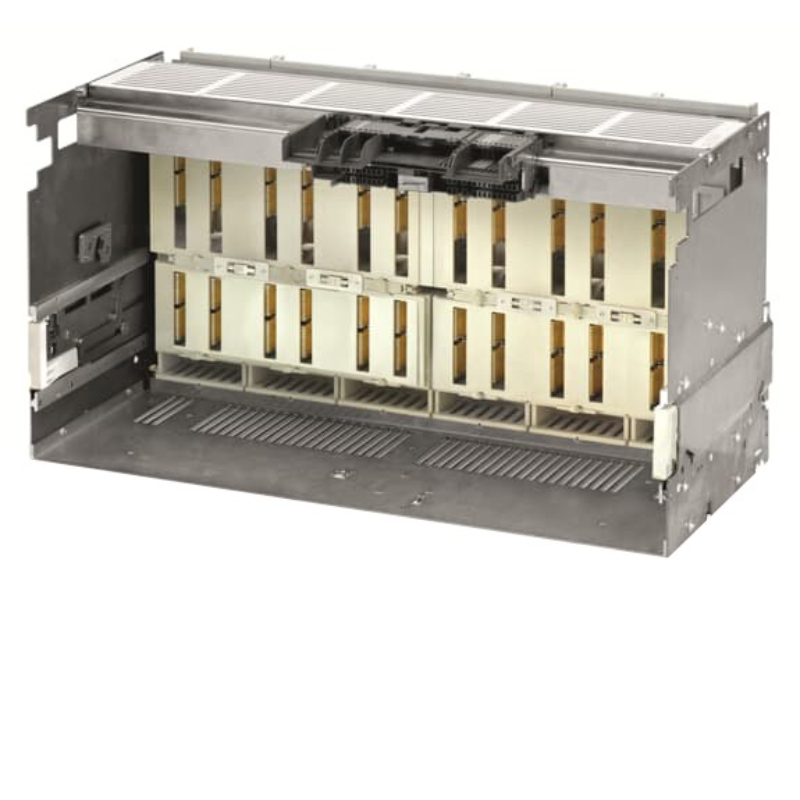

ABB E62H3ETG50W ACB E6.2H 3P 100KA WITHDRAWABLE 5000A EKIP TOUCH LSIG

Product Code: E62H3ETG50W

The ACB E6.2H is a 5000A, 3P circuit breaker with a withdrawable feature. It has a high short-circuit breaking capacity of 100kA. The nominal current rating is 5000A, and it has different adjustable trip settings for various current ranges: L-I1 (2000-5000A), S-I2 (3000-50000A), I-I3 (7500-75000A), and G-I4 (500-5000A). It comes with an auto EKIP Touch LSIG trip unit and HR-HR terminals. The package includes the complete WMP+FP setup.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 5000
Frame E6.2
G (0.1 to 1 x In) - I4 (A) 500-5000
I (1.5 to 15 x In) - I3 (A) 7500-75000
Icw (kA/1s) - Short-time Withstand Current Rating 100
Iu - Uninterrupted Current Rating (A) 5000
L (0.4 to 1 x In) - I1 (A) 2000-5000
No. of Poles 3P
Poles 3P
Power Loss (W) 850
Rated Current (A) 5000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 100
Rated Uninterrupted Current - Iu (A) 5000
S (0.6 to 10 x In) - I2 (A) 3000-50000
Size of Frame E6.2
Standards and Approvals IEC
Terminal Type HR-HR
Trip Unit EKIP Touch LSIG
Trip Unit - Electronic EKIP Touch LSIG
Version Withdrawable
