Control Element Colour	Black
Degree of Protection - Handle	IP65
Handle Dimensions (mm)	308.7W x 70H x 69.4D
Handle Material	Plastic
Interlockable	Yes
Main Circuit Electrical Connection	Bolt Connection
Operating Mechanism	Mechanism Between the Poles 12
Position of Mechanism	Mechanism Between the Poles 12
Position of Operation	Front Operated
Rated Operational Current AC-22B 380-415V (A)	2000
Rated Operational Current AC-22B 500V (A)	2000
Rated Operational Current AC-22B 690V (A)	2000
Shaft Dimensions (mm)	12W x 12H x 280D
Terminal Width (mm)	100
Type of Handle	Pistol
Type of Mounting	Base Mount
Voltage (V)	1000
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	12
Cable Cross Section (mm²)	3 x 500
Conventional Free-Air Thermal Current - Ith (A)	2000
Dimensions (mm)	472.5W x 376.5H x 145.5D
Handle Colour	Black
Handle Length (mm)	274
Handle Type	Pistol
Icw (kA/1s) - Short-time Withstand Current Rating	55
Included	Handle, Shaft
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front operated
Mounting Type	Base Mount
NEMA Degree of Protection	1
No. of Poles	3
Poles	3P
Pollution Degree	3
Power Loss (W)	55/Pole
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Voltage (V)	1000
Rated Short-Time Withstand Current - Icw (kA)	55
Rated Short-time Withstand Current - Icw (kA/1s)	55
Sizes (mm)	472.5W x 367.5H x 145.5D
Standards and Approvals	IEC 60947-3
Suitable For	Distribution Board Installation
Terminal Type	Lug terminals
Type	Main Switch

Load Break Switches

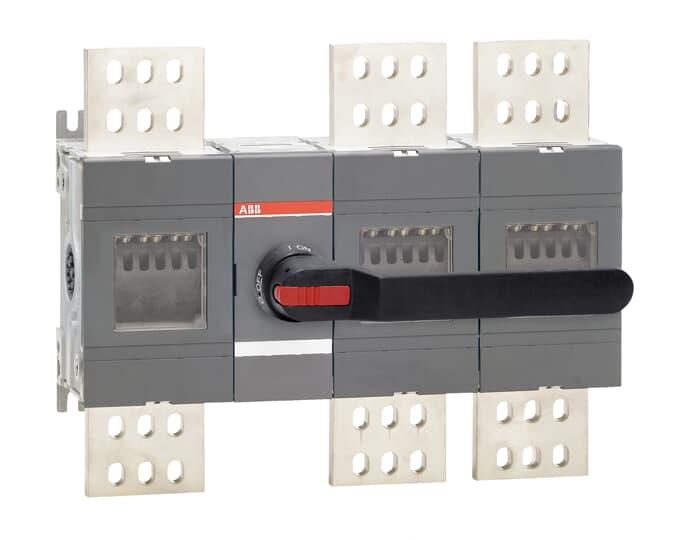

ABB OT2000E12P SWITCH-DISCONNECTOR OT2000E12P
