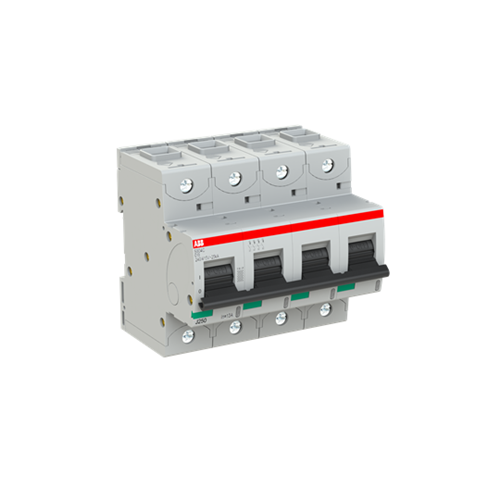

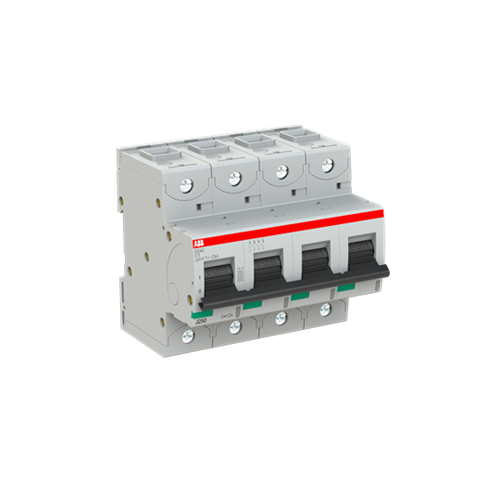

<p>The S800C Series Miniature Circuit Breaker (MCB) is a robust solution designed for commercial and industrial applications. With its comprehensive specifications, it offers reliable protection and performance in various electrical systems.</p><p>This MCB supports a rated current of 13 A, making it suitable for moderate power distribution requirements. It operates efficiently at a rated voltage of 230/400 VAC with the flexibility to function across both 50 Hz and 60 Hz frequencies. Its impressive breaking capacity of 25 kA at 400 VAC ensures that it can handle high fault levels, providing enhanced safety in demanding environments.</p><p>Engineered to withstand challenging conditions, the S800C MCB features an impulse withstand voltage rating of 8 kV and an insulation voltage up to 500 V. This makes it resilient against transient overvoltages commonly encountered in electrical networks. The device&#39;s electrical durability is rated at 10,000 cycles, ensuring long-term reliability and minimal maintenance.</p><p>The MCB adheres to rigorous standards including IEC/EN 60947-2, IEC/EN 60898-1, and UL 1077, assuring compliance with international safety norms. Its construction includes a degree of protection classified as IP20, safeguarding against solid foreign objects greater than 12 mm while maintaining ease of access for authorized personnel during installation or inspection.</p><p>Designed with practicality in mind, the S800C MCB has dimensions measuring a width of 106 mm, height of 95 mm, and depth of 82.5 mm. It fits seamlessly onto standard DIN rails thanks to its mounting type specification. The product’s housing comes in RAL7035 grey color which blends well into most panel designs.</p><p>The unit incorporates four poles with each pole having a width of just 27 mm allowing efficient use within compact spaces without compromising on functionality or safety standards like short circuit capacity rated at an ample level up to15 kA.</p><p>For secure connections under operational stressors such as thermal expansion or vibration-induced loosening events this model requires tightening torque set precisely at3 .5 N-m . Additionally , cable cross sections are supported equally from top-bottom configurations both accommodating sizes up-to50 sq-mm .</p><p>In terms-of environmental considerations ,the device conforms-to pollution degree classification-IP3 further enhancing its adaptability across varied site installations where dust particulates may be present but not overly aggressive corrosive elements prevalent .</p><p>Finally , adopting curve type C characteristic means faster response times during overload scenarios ideal especially when protecting sensitive equipment prone sudden surges yet avoiding nuisance tripping scenarios common other slower acting alternatives might exhibit .</p><p>This mid-lifecycle product remains highly relevant due largely because practical design choices made originally have stood test time proving themselves invaluable asset any serious operation looking balance cost efficiency alongside uncompromising dependability expected today’s market demands .</p>
